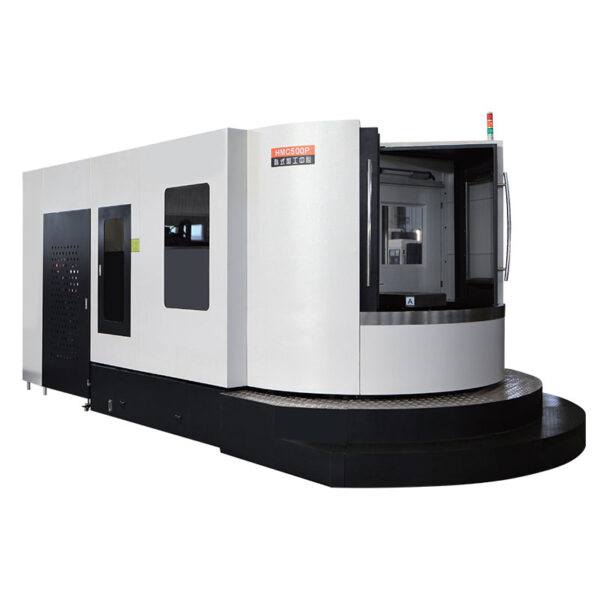

WMT CNC HMC500P Horizontal Machining Center (15/18.5kW)
Manufacturer: WMT CNC Model: HMC500P Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Table size: 500×600mm
Maximum weight support of table: 600kg
Number of workstations: 2
Distance from spindle center to workbench as the straight line: 0~750mm
Workpiece diameter: 950mm
Bench changing time: 35s
Work schedule (x/y/z): 1050/750/900mm
Fast moving distance (X/Y/Z): 30/30/30m/min
Spindle power: 15/18.5kW
The highest speed: 6000rpm
Spindle diameter: 100mm
Positioning accuracy: 0.01mm
Repeat positioning accuracy: 0.006mm
Dao database: 24T
Tool change time: 4.5s
Length x width x height: 6600x4300x2850mm
Machine weight: 13000kg
