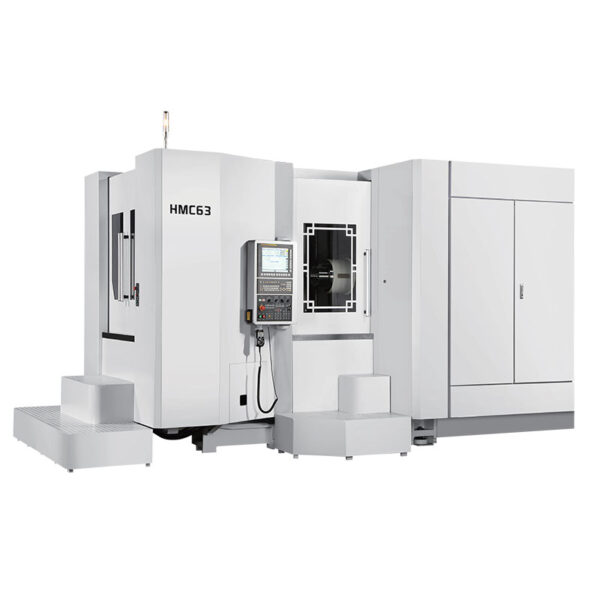

WMT CNC HMC63 Horizontal Machining Center

Table size: 630×630mm

Maximum weight support of table: 1200kg

Number of workstations: 1

Distance from spindle center to workbench as the straight line: 100~1000mm

Workpiece diameter: 1050mm

Work schedule (x/y/z): 1050/900/1030mm

Fast moving distance (X/Y/Z): 60/60/60m/min

Spindle power: 18.5*26kW

The highest speed: 8000rpm

Spindle diameter: 100mm

Positioning accuracy: 0.01mm

Repeat positioning accuracy: 0.006mm

Dao database: 40T

Tool change time: 2.5s

Length x width x height: 6485x3865x3300

Machine weight: 18200kg
