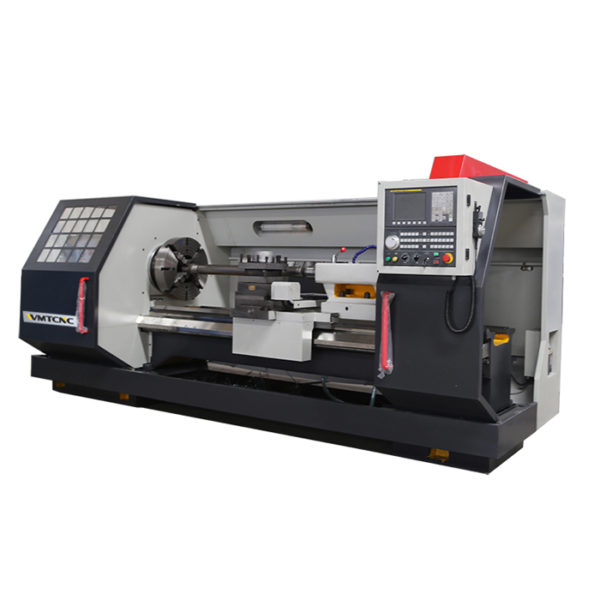

WMT CNC QK1322 CNC Pipe Threading Lathe Machine (670mm)

Max.swing over bed: Ф670mm

Max.swing over carriage: Ф380mm

Max. cutting length: 1500mm

Rail width: 550mm

Spindle bore: Ф225mm

Taper of spindle bore: MT6

Chuck size: 500mm

Range of spindle speed (L): 25-120rpm(H):100-500rpm

X-axis travel: 350mm

Z-axis travel: 1250mm

X/Z rapid speed: 4m/min

Electronic turret: 4 -station

Max.section of tool: 32x32mm

Stroke of tailstock sleeve: 250mm

Diameter/Hole of tailstock sleeve: Ф100mm/MT5

Main motor power: 11kW

Overall dimensions (L x W x H): 3657×1555×1360mm

Packing size (L x W x H): 3857×1755×1560mm

Net weight: 4600kg

Gross weight: 5600kg
