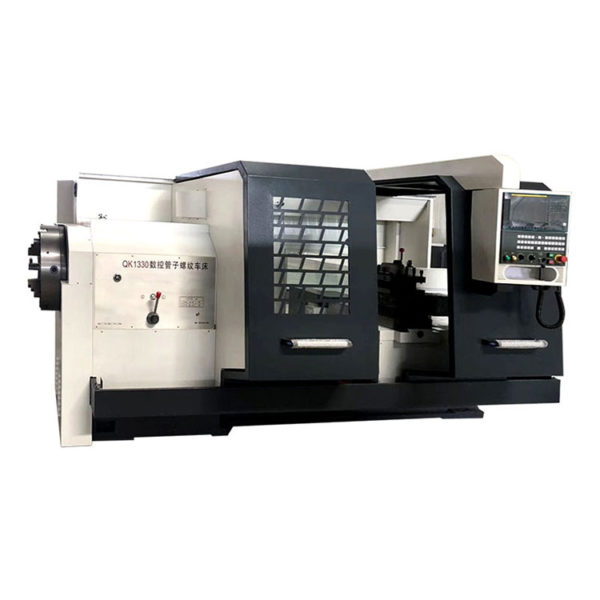

WMT CNC QK1330 CNC Pipe Threading Lathe Machine (800mm)
Manufacturer: WMT CNC Model: QK1330 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max dia.swing over bed(mm): 800
Max dia.swing over cross slide(mm): 480
Max.length of work-piece(mm): 1500/3000/4000/5000
Width of bed(mm): 600/755
Spindle bore(mm): 305
Power of spindle motor: 15kW
Mode of spindle speed: Two gears, smooth adjustment
Range of spindle speed(r/min): (L): 20-100, (H): 100-300
Max.traverse of X/Z(mm): X:450/550; Z:1250
X/Z rapid traverse(r/min): 4000
X-axis motor
Speed(r/min):1500
Torgue(N.m): 15/18
Power(kw): 2.8
Z-axis motor
Speed(r/min): 1500
Torgue(N.m): 18/22
Power(kw): 3.8
Tailstock quill
Diameter(mm): 100
Travel(mm): 250
Taper: Morse NO.6
Electric tool-post
Model: LDB4-6180
No.of tool stations: Vertical four-station
Dimension(mm):280×280
Chuck: K11-630 three jaw chuck
Positioning accuracy(mm): 0.02
Overall dimensions(L*W*H)(mm): 4600×2060/2100×2100
Machine weight(kgs): 7500/9500
