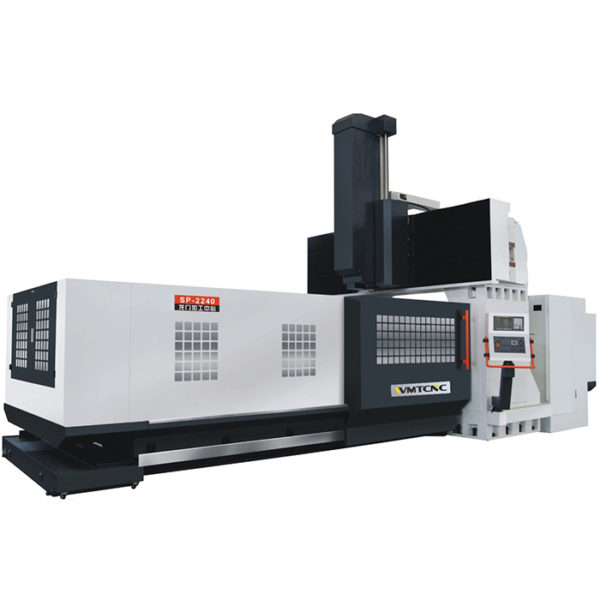

WMT CNC SP-2240 Gantry CNC Milling Machine (18.5/22KW)
Manufacturer: WMT CNC Model: SP-2240 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
X-axis travel: 4200mm
Y-axis travel: 2250
Z-axis travel: 1000mm
Distance from spindle nose to worktable surface: 250-1250mm
Worktable size(WxL): 4000×1800mm
T-slots size (NxWxD): 11-22-160mm
Max. load bearing of worktable: 12000kgs
X/Y/Z guideway size: Roller 2-55/2-55mm,Z-axis hard guideway
Rapid feed speed of X axis: 10000 mm/min
Rapid feed speed of Y axis: 10000 mm/min
Rapid feed speed of Z axis: 10000 mm/min
Main motor power: 18.5/22KW
Spindle model: BT50/Φ190
Motor torque: 117.7N.M
Spindle taper: BT50
Driven type: Gear box 1:4
X/Y/Z linear guideway size: X/Y-axis 2-55# roller linear guideways
X/Y/Z ball screw size: X-axis 8020,Y-axis 6320,Z-axis 5016
Max. tool dimension: Φ110/Φ220mm
Max. length of tool: 350mm
Max.tool weight: 20kgs
Positioning accuracy: 0.03mm
Re-positioning accuracy: 0.018mm
Machine weight: 30000kg
Overall size (LxWxH): 10800×6400×5500 mm
