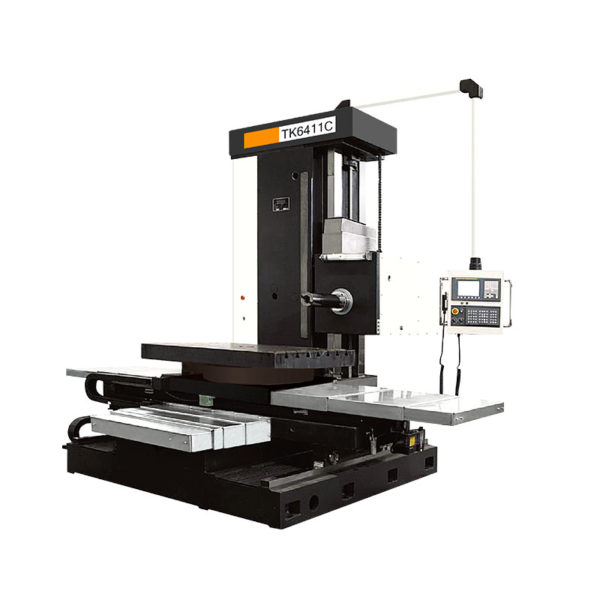

WMT CNC TK6411C Milling Boring Machine
Manufacturer: WMT CNC Model: TK6411C Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Workbench size (length×width): 1350×1000mm
Maximum load-bearing capacity of worktable: 5000kg
Worktable T-slot size (quantity~width×spacing): 7~22×125mm
Transverse travel of worktable (X axis): 1600mm
Vertical travel of headstock (Y axis): 1200mm
Longitudinal travel of sliding seat (Z axis): 1200mm
Axial stroke of boring shaft (W axis): 550mm
Distance from spindle center line to worktable: 0~1200mm
Boring shaft diameter: φ130mm
Maximum tool weight: 25Kg
Rated torque of boring shaft: 1500Nm
Spindle motor power: 15/18.5 KW
Inner hole taper of boring shaft: MAS 403(45°) BT50
Speed of Boring Shaft: 12~1500rpm
Rapid traverse speed: X/Y/Z axis: 10 m/min
Rapid traverse speed: W axis: 5m/min
Feed rate: X/Y/Z/W axis: 5~2000 mm/min
Positioning accuracy X/Y/Z axis: 0.030 mm
Positioning accuracy W axis: 0.025 mm
Repeat positioning accuracy X/Y/Z axis: 0.020 mm
Repeat positioning accuracy W axis: 0.016mm
Ball screw size (X/Y/Z): Ф63×10 mm
Ball screw size (W): Ф50×10 mm
Machine weight: About 18000kg
CNC controller: FANUC OI MF plus
Total electrical capacity: 65KVA
Machine size (L×W×H): 7100×6600×3600 mm
