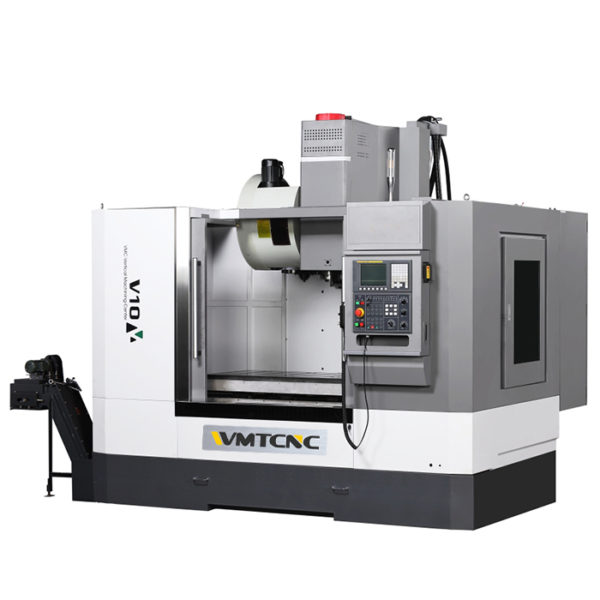

WMT CNC V10 Vertical Machine Centre

Worktable size (LxW): 600x1200mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 1000x600x630mm

Distance from spindle center to column: 667mm

Distance from spindle end to worktable: 120-750mm

Spindle taper: BT40

Spindle power: 11/15kw

Max.spindle speed: 12000rpm

Max.feed speed: 15000mm/min

Rapid feed speed (X/Y/Z): 36/36/30m/min

Max.length of  tool: 300mm

Tool change time(T-T): 1.5s

Positioning accuracy (X/Y/Z): ±0.008mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 2850×2450×2850mm

Max.loading of worktable: 800kgs

Machine weight: 6800kg
