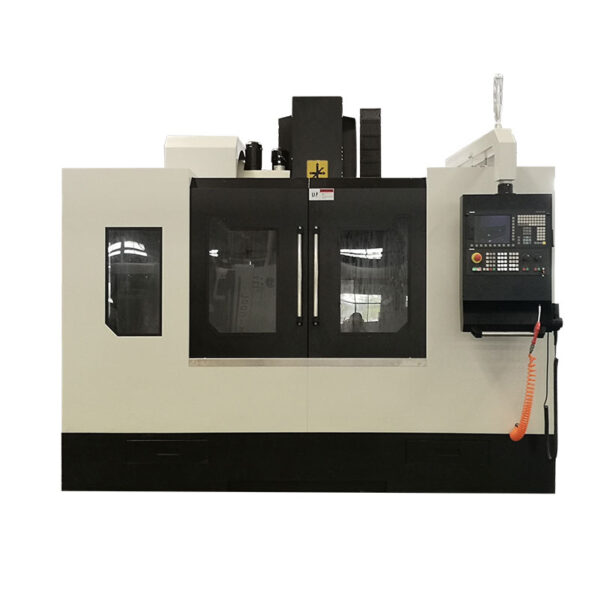

WMT CNC VH11 Vertical Machine Centre

Worktable size (LxW): 1200x550mm

X/Y/Z axis travel: 1130/570/570mm

Distance from spindle center to column: 630mm

Distance from spindle end to worktable: 130-700mm

Spindle taper: BT40

Spindle power: 11/15kw

Max.spindle speed: 10000rpm

Rapid feed speed (X/Y/Z): 15/15/12m/min

LxWxH: 3200x2335x2450mm

Max.loading of worktable: 600kgs

Machine weight: 7000kg
