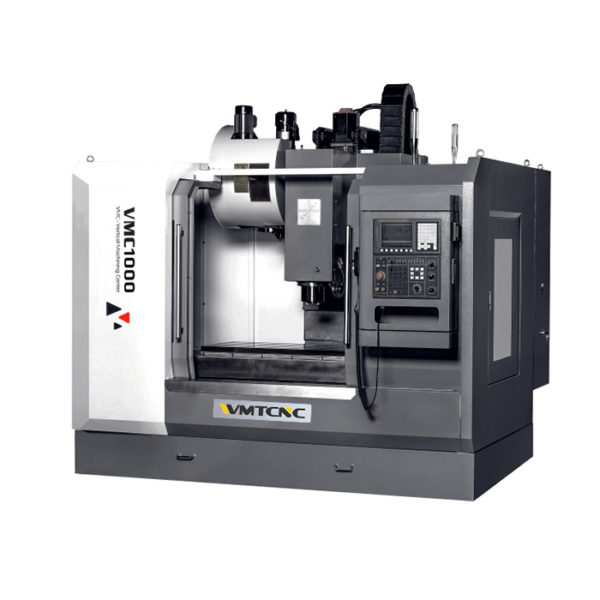

WMT CNC VMC1000 Vertical Machine Centre

Worktable size (LxW): 1200x550mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 1000/570/650mm

Distance from spindle center to column: 610mm

Distance from spindle nose to worktable: 100-750mm

Spindle taper: BT40

Spindle power: 7.5/11kw

Max.spindle speed: 8000rpm

Max.feed speed: 10m/min

Rapid feed speed (X/Y/Z): 18/18/15m/min

Tool change time(T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.012mm

Re-positioning accuracy (X/Y/Z): ±0.008mm

LxWxH: 2700X2510X3000mm

Max.loading of worktable: 800kgs

Machine weight: 7000kg
