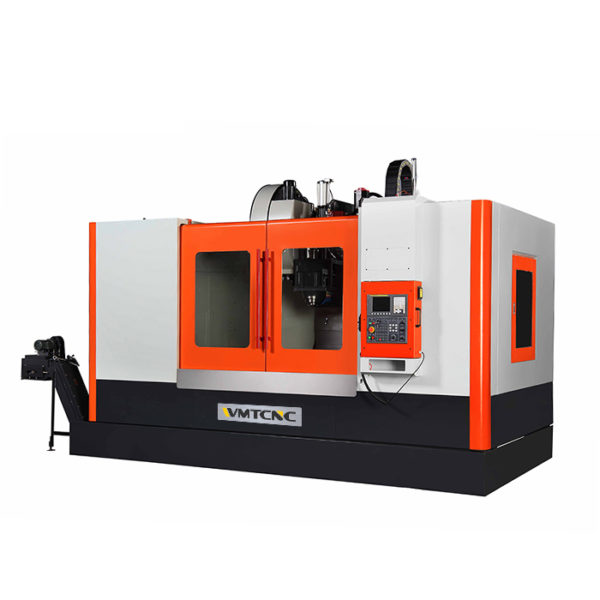

WMT CNC VMC1890 Vertical Machine Centre

Worktable size (LxW): 2000x900mm

T-slot (NxWxD): 5x22x165mm

X/Y/Z axis travel: 1800/900/600mm

Distance from spindle center to column: 950mm

Distance from spindle nose to worktable: 180-980mm

Spindle taper: BT50

Spindle power: 18.5/22kw

Max.spindle speed: 6000rpm

Max.feed speed: 10m/min

Rapid feed speed (X/Y/Z): 15/15/12m/min

X/Y/Z axis ball screw: 5512

Tool change time(T-T): 3s

Positioning accuracy (X/Y/Z): ±0.012mm

Re-positioning accuracy (X/Y/Z): ±0.008mm

LxWxH: 5500x3700x4100mm

Max.loading of worktable: 1200kgs

Machine weight: 16000kg
