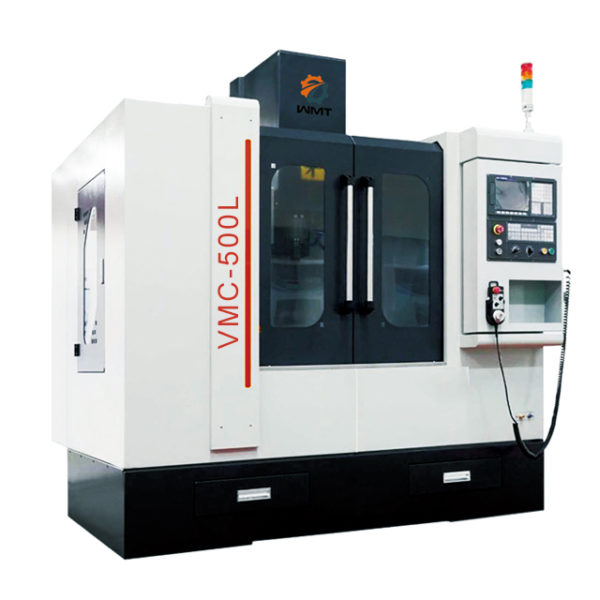

WMT CNC VMC500L Vertical Machine Centre

Worktable size(LxW): 650x400mm

T-slot (NxWxD): 3x14x100mm

X/Y/Z axis travel: 500/400/450mm

Distance from spindle center to column: 450mm

Distance from spindle nose to worktable surface: 100-550mm

Spindle taper: BT40

Spindle power: 3.7kw

Max.spindle speed: 10000rpm

Max.feed speed: 10m/min

Rapid feed speed(X/Y/Z): 30/30/25m/min

X/Y/Z axis ball screw: 3210

Max.length of tool: 300mm

Tool change time(T-T):2.5s

Positioning accuracy(X/Y/Z): ±0.005mm

Re-positioning accuracy(X/Y/Z): ±0.002mm

LxWxH: 1900x1700x2240mm

Max.loading of worktable: 300kgs

Machine weight: 3500kg
