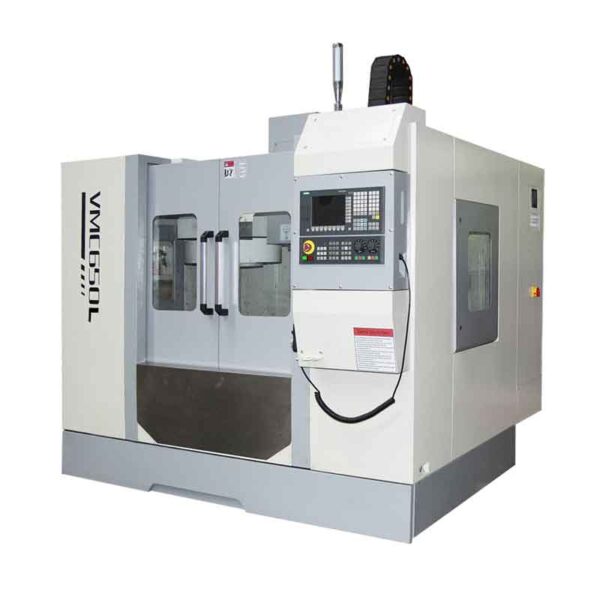

WMT CNC VMC650L Vertical Machine Centre
Manufacturer: WMT CNC Model: VMC650L Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Table size: 900*400mm
Max. table load: 500KG
T slot qty-width*distance: 3-18*125
spindle speed: 8000rpm
Spindle nose to table surface: 120-620mm
Spindle center to column surface: 500mm
Spindle taper: BT40
Main motor power: 5.5/7.5 kw
Three-axis servo motor power: 2.0/2.0/3.0 kw
X axis travel: 650mm
Y axis travel: 450mm
Z axis travel: 500mm
X/Y/Z axis rapid feed: 20/20/18 m/min
Tool changer type: Umbrella type
Tools capacity: 16
Max. tool length: 250mm
Max. Tool diameter: φ100
Max.tool(kinfe) weight: 7kg
Positioning accuracy: ±0.007
Repeat positioning accuracy: ±0.005
Net Weight: 3800kg
Overall Dimension: 2300*2200*2400mm
