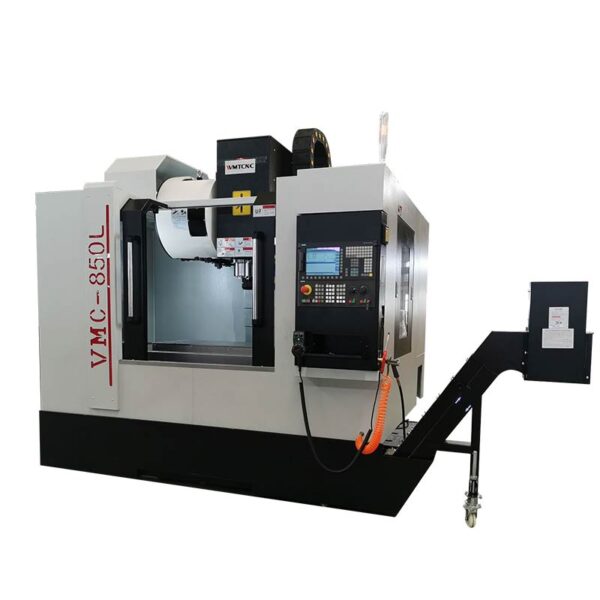

WMT CNC VMC850L Vertical Machine Centre (8000RPM)
Manufacturer: WMT CNC Model: VMC850L Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Worktable size (LxW): 1000x460mm
T-slot (NxWxD): 5x18x100mm
X/Y/Z axis travel: 850/500/500mm
Distance from spindle center to column: 520mm
Distance from spindle nose to worktable surface: 150-700mm
Spindle taper: BT40
Spindle power: 7.5/11kw
Max.spindle speed: 8000rpm
Max.feed speed: 12m/min
Rapid feed speed (X/Y/Z): 36/36/24m/min
X/Y/Z axis ball screw: 4012
Max.length of tool: 300mm
Tool change time(T-T): 2.5s
Positioning accuracy (X/Y/Z): ±0.005mm
Re-positioning accuracy (X/Y/Z): ±0.002mm
LxWxH: 2620x2080x2525mm
Max.loading of worktable: 600kgs
Machine weight: 5500kg
