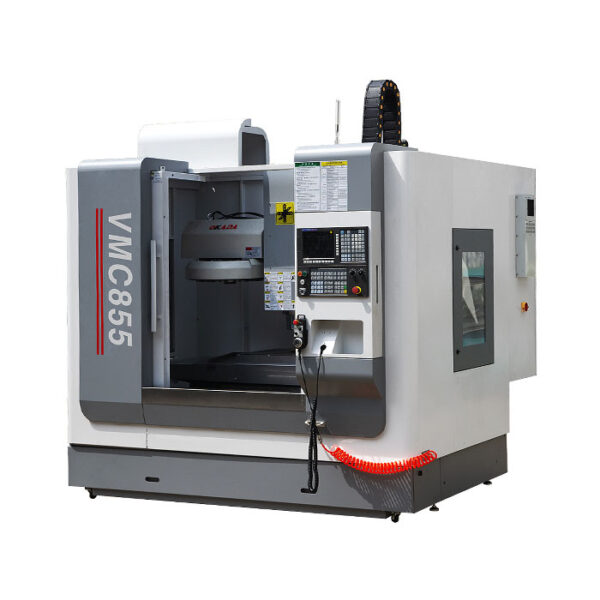

WMT CNC VMC855 Vertical Machine Centre

Worktable size (LxW): 1000x550mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 800/550/550mm

Distance from spindle center to column: 595mm

Distance from spindle end to worktable: 120-670mm

Spindle taper: BT40

Spindle power: 7.5kw

Max.spindle speed: 8000rpm

Max.feed speed: 10m/min

Rapid feed speed (X/Y/Z): 36/36/32m/min

X/Y/Z axis ball screw: 4010/C3

Positioning accuracy (X/Y/Z): ±0.010mm

Re-positioning accuracy (X/Y/Z): ±0.003mm

Water tank volume: 200L

Cooling pump power: 120w

Cooling pump flow: 50L/min

LxWxH: 2750×2300×2300mm

Machine weight: 5300kg
