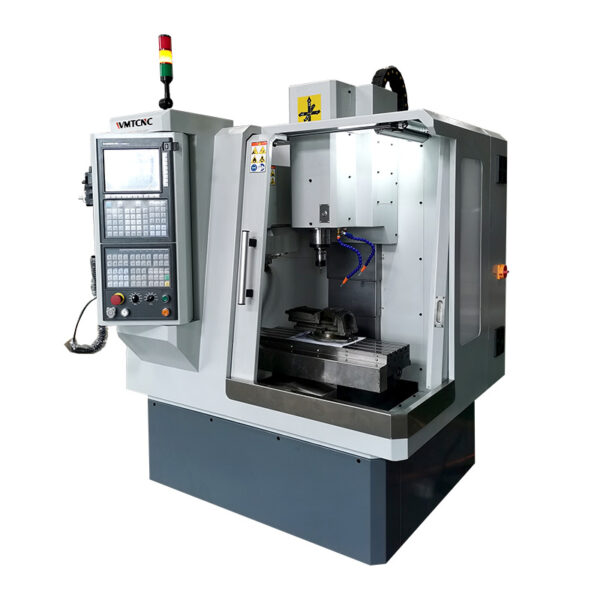

WMT CNC XH7122 CNC Milling Machine (2.2/3.7kw)

Worktable size (LxW): 700x210mm

Max. loading on worktable: 200kgs

T-slot size: 4x12mm

X/Y/Z axis travel: 360/260/440mm

Distance from spindle center to column: 270mm

Distance from spindle nose to worktable: 60-405mm

Spindle taper: BT30

Main motor power: 2.2/3.7kw

Max.spindle speed: 6000-8000rpm

Max.feed speed: 10m/min

Rapid feed speed: 10-12m/min

Main motor torque (servo): 14/23.7N.m

X/Y/Z axis ball screw: 5512

Max.length of tool: 300mm

Tool change time(T-T): 3s

Positioning accuracy (X/Y/Z): ±0.02mm

Re-positioning accuracy (X/Y/Z): ±0.01mm

Feeding motor power: 1.5kw

Feeding motor torque: 6N.m

Over size (LxWxH): 1470x1550x2080mm

Weight: 1200/1300kg
