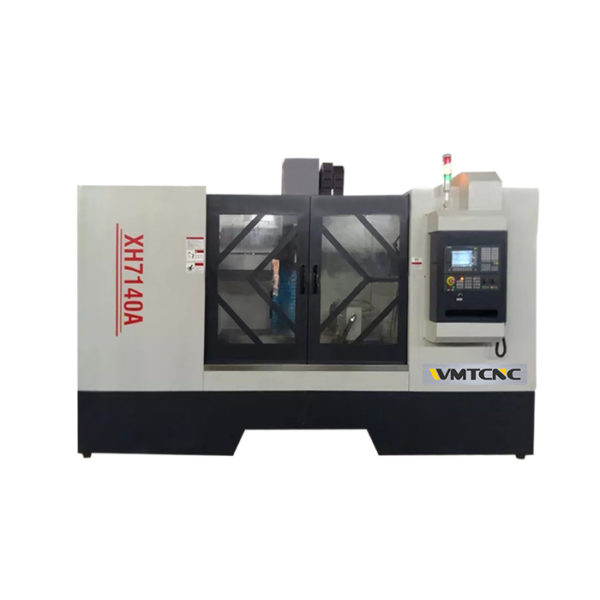

WMT CNC XH7140 CNC Milling Machine (5.5/7.5kw)

Worktable size (LxW): 1700x400mm

T-slot (NxWx D): 3x18x110mm

X/Y/Z axis travel: 1300/420/500mm

Distance from spindle center to column: 500mm

Distance from spindle nose to worktable: 100-600mm

Spindle taper: BT40

Main motor power: 5.5/7.5kw

Max.spindle speed: 8000rpm

Rapid feed speed (X/Y/Z): 8/8/6m/min

AC servo motor torque (X/Y/Z): 15/15/15N.m

Over size (LxWxH): 2600x2200x2300mm

Net weight: 3800kg
