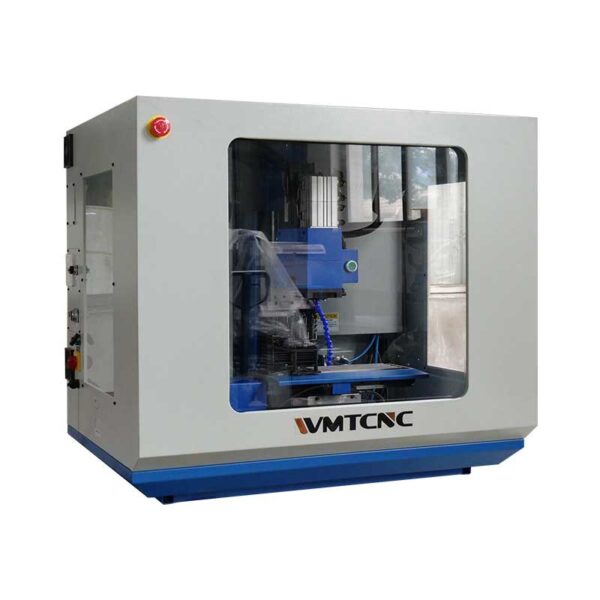

WMT CNC XK7115 CNC Milling Machine (1000w)
Manufacturer: WMT CNC Model: XK7115 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Worktable size: 400×145mm
T-slot size: 3×12×40
Loading capacity of worktable: 20kg
X axis travel: 260mm
Y axis travel: 152mm
Z axis travel: 180mm
Distance from spindle nose to worktable surface: 60-240mm
Distance from spindle center to column: 200mm
Spindle taper: ISO20
Spindle power: 1000w
Spindle speed: 100-5000r/min
X/Y/Z rapid feed speed: 2000mm/min
X/Y/Z axis torque: X/Y:1.35 Nm Z: 3.1Nm
Position of toolpost: 4
Tool change time: 10s
Positioning accuracy: 0.015mm
Re-positioning accuracy: 0.01mm
Voltage: 230/110V
N.W/G.W: 280/340kg
Machine size (LxWxH): 1040×860×940mm
Packing size (LxWxH): 1170×960×1100mm
