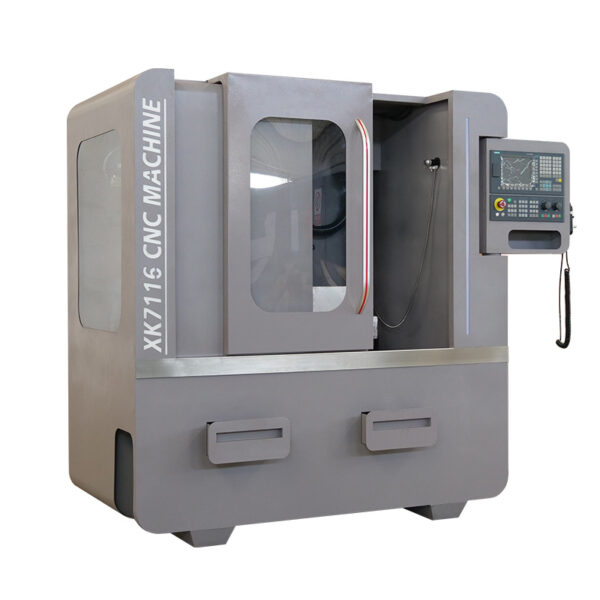

WMT CNC XK7116 CNC Milling Machine (3KW)
Manufacturer: WMT CNC Model: XK7116 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
X axis travel: 350mm
Y axis travel: 160mm
Z axis travel: 400mm
Spindle nose to table distance: 476.4mm
Spindle center to column distance: 161mm
Worktable size: 600X163mm
Main motor: 3KW
Spindle speed: 18000rpm
Coolant system: liquid cooling
Spindle taper: BT30
Capacity of ATC: 8T
Air compressor pressure: 12L
Lubricating pump capacity: 1L
Working light: 10W
Cooling pump: 40W
Controller system: after1500MDC-4
XY axis servo motor torque: 2.4N.M
Z axis servo motor torque: 4N.M
XYZ fast moving speed: 8
XY Linear guideway: 15mm（Taiwan HIWIN）
Z linear guideway: 20mm（Taiwan HIWIN）
X axis ball leadscrew: 1605（Taiwan TBI）
YZ axis ball leadscrew: 2005（Taiwan TBI）
