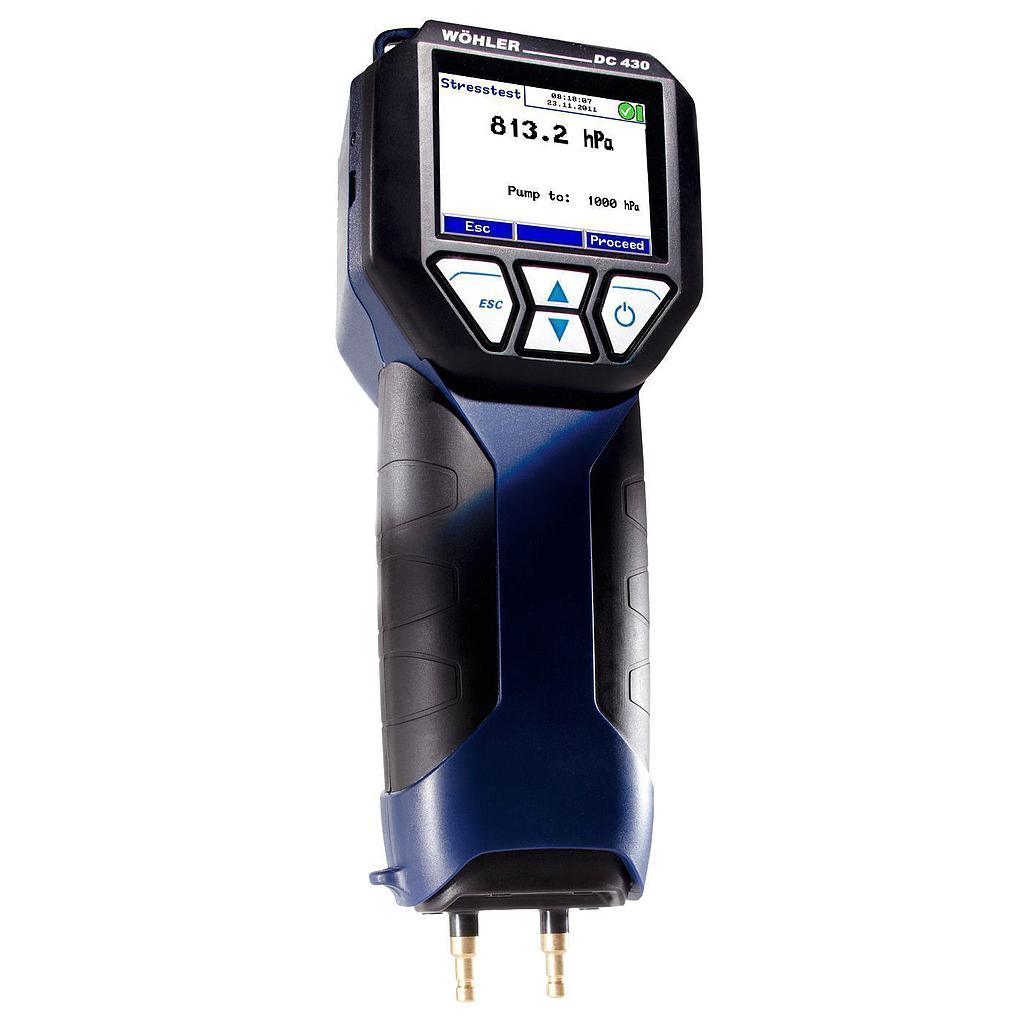

Wöhler DC 430 Leakage Tester (0 ~ 10; -20 ~ 60 ° C; 300 ~ 1.100 hPa)

Technical data

- Differential Pressure:

Range: ±2 bar

Accuracy: < 3 % of the reading, within the range < ±200 Pa better than ±6 Pa

Resolution: 1 Pa within the range -210…210 hPa, otherwise 10 Pa

- Leakage test:

Range: 0~10 l/h, tested up to 8 l/h

Accuracy: < ±0,2~4 l/h, otherwise 5 % of the reading

Resolution: 0,1 l/h

- Internal temperature measurement:

Range: -20~60 °C

Accuracy: < ±1 °C

Resolution: 0,1 °C

- External temperature measurement (optional, e.g. with measuring pliers for temperature measurement or special wall temperature probe)

Range: 2 canals / 20~800 °C

Accuracy: < ±2 °C within the range of 0~133 °C, otherwise 1,5 % of the reading

Resolution: 0,1 °C

- Moisture measurement (optional)

Range: 0~100 % r.H. non condensing

Accuracy: ±2 % r.H., within the range of 10~90 % r.H., otherwise < 3 % r.H.

Resolution: 0,1 % r.H.

- Absolute pressure (optional)

Range: 300~1.100 hPa

Accuracy: ±1,5 hPa

Resolution: 0,1 hPa

- Current consumption: 4 AA rechargeable batteries or 4 AA disposable batteries 1,5 V

- Interfaces: USB interface for data transfer to a PC. It is possible to transfer the data directly from the meter to the Wöhlerthermal fast printer.

- Operating temperature: 5~40 °C

- Dimensions: 80 x 225 x 60 mm

Scope of delivery

1 x Wöhler DC 430 US Version without case

1 x Plastic Case for Wöhler DC 410flow / DC 430
