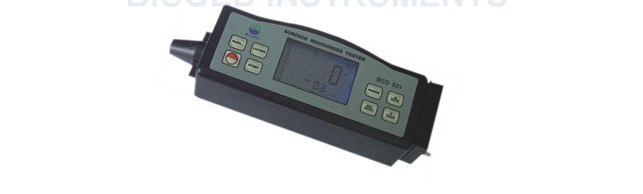

Biuged BGD 931 Surface Roughness Tester (Ra: 0.050~10μm/1.000~400.0μ inch; Rz: 0.020~100μm/0.780~4000μ inch)

  • 生産者:Biuged
    Model: BGD 931
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

- Standard: ISO4287,DIN4768,JIS   B,ANSI 146.1

- Measuring range:

Ra: 0.050~10μm/1.000~400.0μ inch

Rq: ----

Rz: 0.020~100μm/0.780~4000μ inch

Rt: ----

- Accuracy: ≤±10%

- Resolution:

+ 0.001μm(reading <10μm)

+ 0.01μm(10μm≤ reading <100μm)

+ 0.1μm(reading  ≥100μm)

- Fluctuation of display value: ≤6%

- Profile digital filter:

Filtered profile: -----

Non- filtered profile: -----

- Sensor:

Radius: 10μm

Material: Diamond

Measuring force: 16mN(1.6gf)

Probe angle: 90°

Vertical radius of guiding head: 48mm

Maximum driving stroke: 17.5mm/0.75 inch

Cutoff length: 0.25mm, 0.8mm, 2.5mm

- Driving speed:

Measuring:

+ Sampling length = 0.25mm When Vt=0.135mm/s

+ Sampling length = 0.8mm When Vt=0.5mm/s

+ Sampling length = 2.5mm When Vt=1mm/s

Returning: Vt=1mm/s

- Evaluation length: 1~5L selectable

- Metric/Imperial: Conversion

- Auto off: √

- Memory: -----

- Pc interface: -----

- Built in Li-ion battery: Rechargeable

- Operating condition:

TEMP: 0~50℃

Humidity: ﹤85%RH

- Dimension: 140×52×48mm(5.5×2.2×1.9 inch)

- Net Weight: 420g
