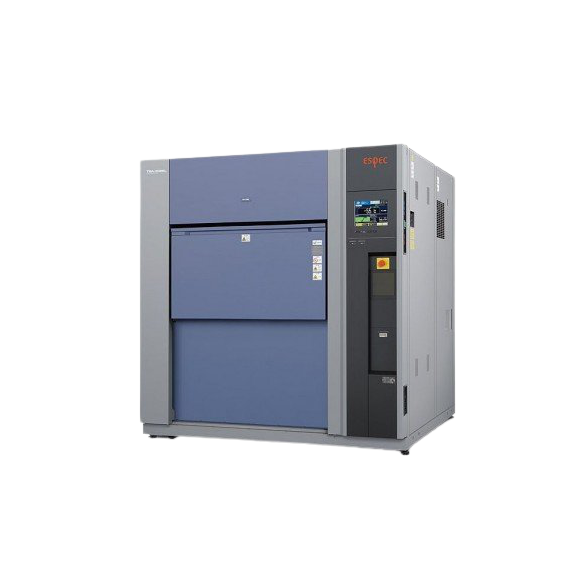

ESPEC TSA-303EL-W 熱衝撃チェンバー (50~200°C, –65~0°C, 970x460x670mm)

System: Two-zone test by means of damper switching

Performance:

    Test area:

           High temp. exposure range: Ambient temp. +50 to +200°C (+122 to +392°F)

           Low temp. exposure range: –65 to 0°C (–85 to +32°F)

           Temp. fluctuation ±0.5°C (±0.9°F)

     Hot chamber:

           Temp. heat up time: Ambient temp. to +200°C (+392°F) within 15 min.

     Cool chamber:

           Temp. pull down time: Ambient temp. to –70°C (–94°F) within 40 min.

      Temp. recovery: within 10 min.

Inside Dimensions (W x H x D mm): 970 x 460 x 670

Outside dimensions (W x H x D mm): 1870 x 1900 x 1770 [1805]

Weight: Approx. 1420 kg

Utility requirements:

       Allowable ambient conditions: 0 to 40°C (+32 to +104°F)

       Power supply: 380/400/415V AC 3ø 50Hz: 70 A

       Cooling water supply rate: 4.6 m3/h (ref. water temp.: +32°C)

       Operating cooling water temp. range: +5 to +38°C (+41 to +100°F)
