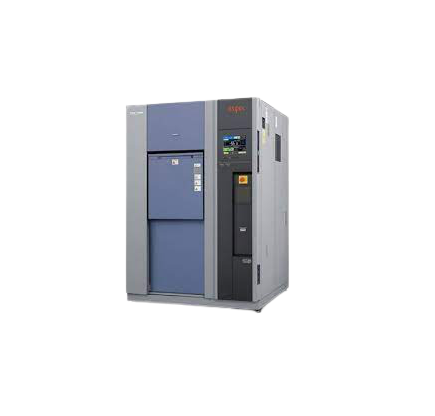

ESPEC TSA-73ES-W 冷熱衝撃装置TSAシリーズ (60~200°C, –70~0°C, Water-cooled, 410x460x370mm)

  • 生産者:ESPEC
    Model: TSA-73ES-W
    品物を保証します: 12 Month
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

System: Two-zone or three-zone test by means of damper switching

Performance:

    Test area:

           High temp. exposure range: +60 to +200°C (+140 to +392°F)

           Low temp. exposure range: –70 to 0°C (–94 to +32°F)

           Temp. fluctuation ±0.5°C (±0.9°F)

     Hot chamber:

           Temp. heat up time: Ambient temp. to +200°C (+392°F) within 15 min.

     Cool chamber:

           Temp. pull down time: Ambient temp. to –75°C (–103°F) within 40 min.

      Temp. recovery: within 5 min.

Inside Dimensions (W x H x D mm): 410 x 460 x 370

Outside dimensions (W x H x D mm): 1310 x 1900 x 1470 [1505]

Weight: Approx. 1050 kg

Utility requirements:

       Allowable ambient conditions: 0 to 40°C (+32 to +104°F)

       Power supply: 380/400/415V AC 3ø 50Hz: 50 A

       Cooling water supply rate: 3.1 m3/h (reference water temp: +32°C) (water-cooled specification)

       Operating cooling water temp. range: +5 to +38°C (water-cooled specification)

Details

ACCESSORIES:

• Specimen basket (18-8 Cr-Ni stainless steel/5 mesh metal basket):

  TSA–43

  (W230 x H40 x D356 mm/load capacity up to 2.5 kg): 2

  TSA–73

  (W400 x H40 x D356 mm/load capacity up to 5 kg): 2

  TSA–103

  (W640 x H40 x D356 mm/load capacity up to 5 kg): 2

  TSA–203

  (W640 x H40 x D656 mm/load capacity up to 17 kg): 2

  TSA–303

  (W960 x H40 x D656 mm/load capacity up to 17 kg): 2

• Shelf brackets:

  (shelf attachment pitch 60 mm, adjustable in 7 levels): 2 sets

• Cartridge fuse:

  5A (200V AC specification): 2

  10A (220/380/400/415V AC specification): 1

• Cable port rubber plug: 1

• Nipple (water-cooled specification only): 1

• Strainer (water-cooled specification only): 1

• Strainer element (water-cooled specification only): 1

• Operation manual: 1
