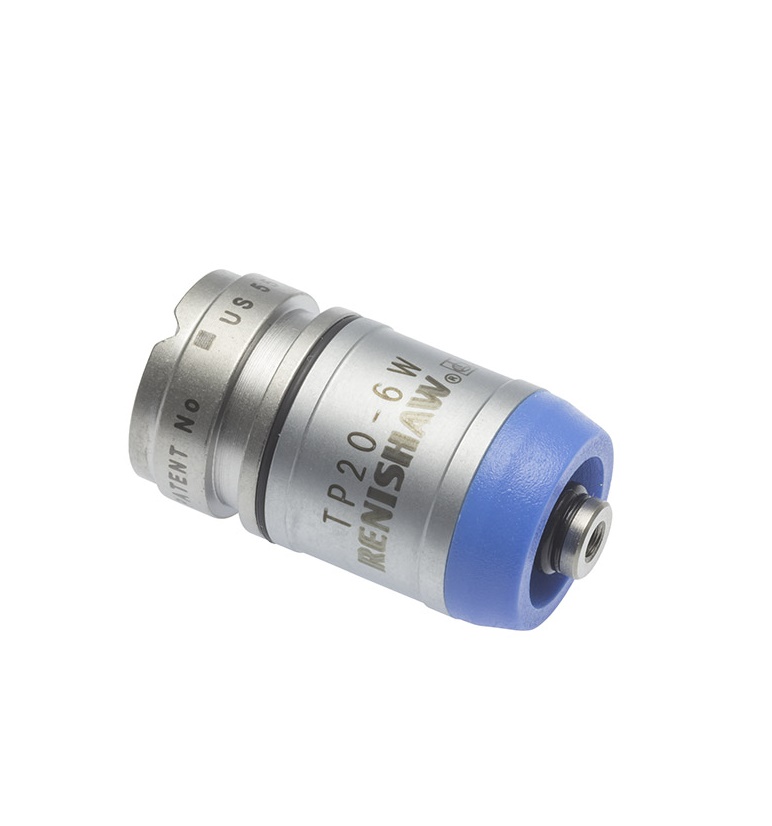

MITUTOYO TP20 High-Accuracy Touch Trigger Probe

Measuring direction: ±X, ±Y, +Z

Directionality (XY: 2D): ±0.8 m or less (with the STANDARD FORCE 10mm stylus), ±2.5 m or less (with the 50mm stylus)

Directionality (XYZ: 3D): ±1 m or less (with the STANDARD FORCE 10mm stylus), ±4 m or less (with the 50mm stylus)

Amount of over-travel:

- XY: ±14º

- Z: +4.0mm (STANDARD FORCE); +3.7mm (MEDIUM FORCE); +2.4mm (EXTENDED FORCE)

Maximum stylus length: 50mm (STANDARD FORCE); 60mm (MEDIUM FORCE); 60mm (EXTENDED FORCE)

Stylus mounting method: M2 screw

Mass of a single probe unit: 22g (Probe body: 13g, Probe modulel: 9g)

Durability: 1,000,000 times

Probe head: Essential: PH10M/PH10MQ/MIH/PH1

Applicable models: Manual/CNC coordinate measuring machines

Configuration

TP20 probe main unit

Probe module [STANDARD]

Probe module [MEDIUM]

ø4X10mm stylus

Cleaning tool

Single-ended wrench

Double-ended wrench

Stylus tool

User's Manual

Certificate
