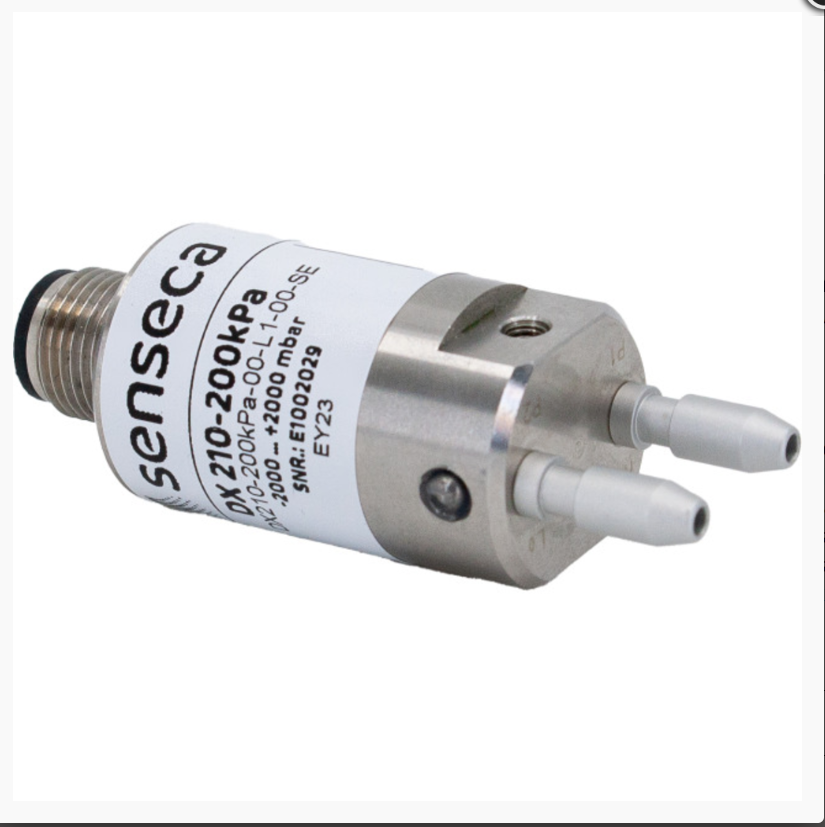

Senseca DX 240-200kPa-00-L01-00 Digital absolute pressure sensor with hose connection for gases (0…200 kPa)

  • 生産者:Senseca
    Model: DX 240-200kPa-00-L01-00
    P/N: 486679
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Applications: Only air and non-aggressive dry gases

Burst pressure: 6 x FS

Compensated temperature: 0…+50 °C

Connection (to meter): 4-pole M12

Connection (to process): For ⌀ 6x1 mm (internal ⌀ 4 mm) and ⌀ 8x1 mm (internal ⌀ 6 mm) hoses. 2 inputs for differential probes, 1 input for absolute probes

Dimensions: ⌀ 21.7 x 62 mm

Long-term stability: < 1 %FS / year

Material: Stainless steel

Operating conditions: -25…+85 °C / 0…95% RH non-condensing

Output: UART (TTL 3.3V)

Overall error: ±2.5 %FS over the whole compensated temperature range

Overpressure: 3 x FS

Power supply: 3.3 ... 6 Vdc

Protection degree: IP65

Storage temperature: -40…+125 °C

Warm-up time: 2.3 ms

Weight: 74 g approx.

Accuracy; ±0.5 %FS @ 25 °C

Measuring range: From ±2.5 hPa to ±700 kPa differential or 0…200 kPa absolute depending on model

Cable connection: M12A connector, 4-pin

Calibration: Factory adjustment with test protocol

Compensated temperature range: 0 ... +50 °C

Housing: Stainless steel

Option: 1 m PVC connection cable M12

Pressure connection: 1x connection for tube 6x1 mm (4 mm inner) or 8x1 mm (6 mm inner), absolute

Protection type: IP65

Sensor: MEMS pressure sensor

Version: Interchangeable without loss of accuracy

Working temperature: -25 ... +85 °C
