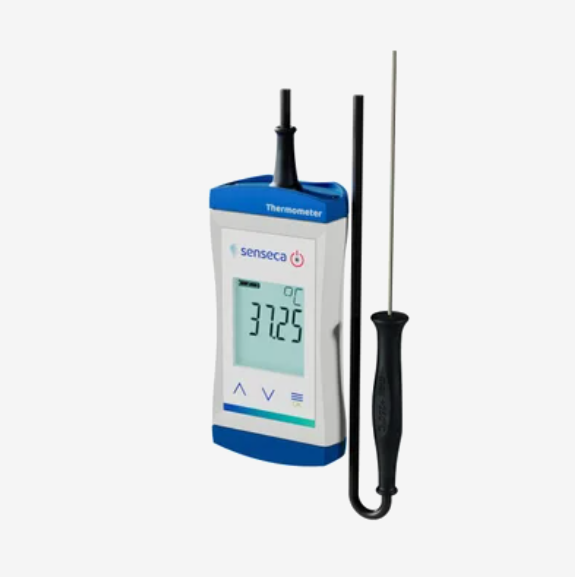

Senseca ECO 121-3 Waterproof alarm thermometer with immersion probe (– 70.0 ... +250.0 °C (– 94.0 ... +482.0 °F))

  • 生産者:Senseca
    Model: ECO 121-3
    P/N: 486750
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Set-Option: Device in carton box, testprotocol, batteries, manual

Accuracy:

– 20 ... +100 °C: ±0.1 K ±1 digit

– 70 ... +250 °C: ±0.2% of measured value ±2 digits

Connections: Fixed Pt1000 sensor

Dimensions: 108 x 54 x 28 mm (H x W x T) without sensor

Housing material: Break-proof ABS housing

Operating conditions: – 20 ... +50 °C; 0 ... 95% relative humidity (non-condensing), temporarily usable up to 100% relative humidity

Power consumption: approx. 5000 h operating time

Power supply: 2 x AA battery

Protection type: IP65/IP67

Weight: 130 g (without sensor)

Display: 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Measuring range: – 70.0 ... +250.0 °C (– 94.0 ... +482.0 °F)

Cable: Cable length 1 m silicone cable

Current supply: 2 x AA batteries

Measuring input: Pt1000 (2-wire)

Probe (permanently connected): With immersion probe GF 1TK-T3 , Ø3 mm, handle short time 250°C, permanent 230°C, 1 m silicon cable 200°C

Resolution: 0.1 °C

Sensor connection: Probe fixed on the device

Working temperature: -20 ... +50 °C
