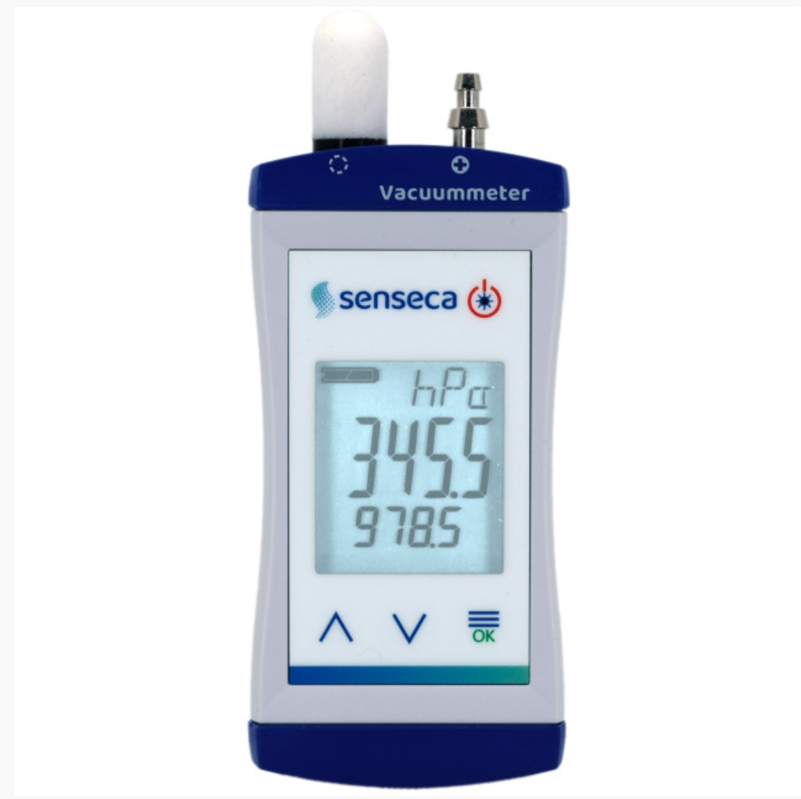

Senseca ECO 240-1-MCM-VAC Vacuum / Barometer with pressure port (0.0..1700.0 hPa (mbar))

Pressure connection: G1/8 inch port incl. mini quick coupling plug nominal diameter 2.7

Set-Option: Device in carton box, testprotocol, batteries, manual, without temperature probe

Option connection: add. housing vent for fast complete evacuation + extra adjustment < 1 mbar

Additional functions: Sea level correction, NULL/Tare function, AVR: Averaging over 2 s / 5 s / 10 s

Adjustment: Zero point and slope

Connections: one tube connection, interchangeable with G1/8 universal port

Dimensions: 108 x 54 x 28 mm (without pressure connection)

Display: 3-line segment LCD, additional symbols, illuminated

(white, illumination time adjustable), overhead display on key press

Display units: hPa, mbar, PSI, mmHg (Torr)

Error: max. (-20 ... 50 °C) ± 1.25 % FSS

Housing material: Break-proof ABS housing

Max. overload: 3000 hPa abs.

Measurement rate: Slow: 2.5 measurements per second, Fast: 25 measurements per second

Measurements: Absolute pressure

Operating conditions: -20 to +50 °C; 0 to 95 % r.h. (temporarily 100 % r.h.)

Power consumption: ca. 1 mA (slow measurement SLO), battery life ca. 3000 h

Power supply: 2 x AA battery (included in the scope of delivery)

Precision: typ. @ 25 °C 2 hPa (@ 5..30 °C)

Option: -VAC @ 0...20 hPa: ± 1 hPa (@ 10..30 °C)

Protection type: IP 67

Standard functions: Min / Max / Hold, auto-Power-Off-function / if activated, the product switches off automatically

Storage temperature -20...+70 °C

Weight: 140 g incl. battery

Measuring range: 0.0..1700.0 hPa (mbar)

Current supply: 2 x AA batteries

Working temperature: -20 ... +50 °C
