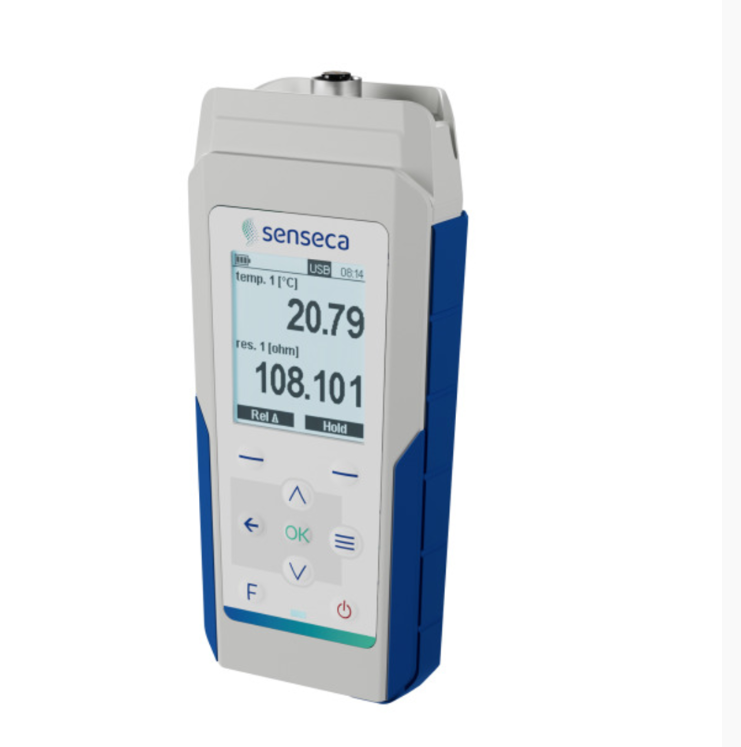

Senseca PRO 111 High precision thermometer (standard, -200…+850 °C / -328…+1562 °F)

  • 生産者:Senseca
    Model: PRO 111
    P/N: 486650
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Version: Standard

Accuracy:

resolution 0.01: ±(0.03 °C + 0.06% of measured value) ± 1 digit

resolution 0.1: ±(0.1 °C + 0.2% of measured value) ± 1 digit

Auto power off:

Yes, user configurable

Automatically disabled if external power is connected

Battery autonomy: > 150 h typ. continuous operation

Channels:

1 for 4-wire Pt100/Pt1000 probes

4-pole M12 connector

Clock: User settable RTC/ Max. drift 1 min/month @ 25 °C

Dimensions: 170 x 78 x 38 mm

Housing material: ABS, TPE (side protection), Polyester (front panel)

Linearization: According to IEC 60751

Logging interval: 1, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 20, 30 min / 1 hour (only PRO 115)

Logging type: Automatic with manual or scheduled start/stop (only PRO 115)

Long-term drift: ±0.02 °C/year

Measurement rate: 2 meas/s

Operating conditions:; -5…50 °C / 0…85 %RH non-condensing

PC connection: USB C/ Mass Storage Device (only PRO 115)

Power consumption: 20 mA typ.

Power supply: 4 x AA alkaline batteries

External: 5 Vdc via USB C (power adapter or PC USB port)

Protection degree: IP 67 (except probe connection) / IK 04

Storage capacity:

Up to 1 million data sets, file system based

Each data set includes date/time stamp and measurement

Data are stored in CVS files (only PRO 115)

Storage temperature:; -25…65 °C (without batteries)

User interface: Multilingual (de, en, it, fr, es)

Weight: 340 g approx.

Display: 140 x 160 dot matrix backlit LCD / Visible area 42 x 50 mm

Multiple choice of measurement screens:

Large digit single value

Multi-row

Statistical info (Min/Avg/Max)

Chart view

Measuring range: -200…+850 °C / -328…+1562 °F

Resolution: 0.01 °C/°F (-199.99 °C/°F < t < +199.99 °C/°F) ; 0.1 °C/°F (remaining range)

Alarm function: sound & light

Current supply: 4 batteries (Mignon AA/LR6) or via USB socket

Measuring input: Pt100 (4-wire)

Output: USB jack type C

Probe connections: M12A Socket, 4/5-pin for 4-wire Pt100 temperature probes

Protection type: IP67 (except sensor input)

Scope of delivery: incl batteries, short manual

Set-Option: Device in carton box, testprotocol, Quickstart, without temperature probe
