Senseca PRO D05.2 Multifunction handheld meter (2 channel, Temperature, humidity, pressure, light, CO2, VOC)

The wide range of probes available allows measuring:option max 1 sensor

• Temperature (option sensor)

• Absolute, relative and differential pressure (option sensor)

• Humidity: relative and absolute, Dew Point, wet bulb temperature, mixing ratio, partial vapor pressure (option sensor)

• Air speed, flow rate (configurable duct section) (option sensor)

• Illuminance, luminance, irradiance, UVA, UVB, UVC, UVBC, PAR. Integral calculation with manual, start/stop and setting of time/value limit.(option sensor)

• Indoor Air Quality (IAQ): CO2 and VOC index (option sensor)

Current supply: 4 x AA accus, NiMH, charging connection: USB-C socket, charger not included

Auto power off: Yes, user configurable / Automatically disabled if external power is connected

Battery autonomy: > 200 h typ. continuous operation (fully charged batteries and backlight off). The effective autonomy depends on the number and type of connected sensors.

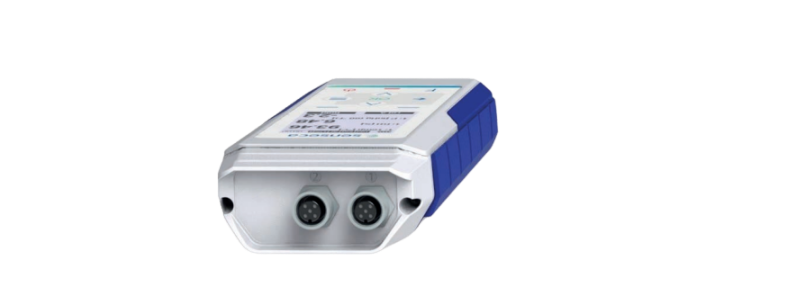

Channels: 2, 5-pole M12 connector for digital probes

Clock: User settable RTC / Max. drift 1 min/month @ 25 °C

Dimensions: 170 x 78 x 38 mm

Housing material: ABS, TPE (side protection), Polyester (front panel)

Logging interval: 1, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 20, 30 min / 1 hour (only PRO D05)

Logging type: Automatic with manual or scheduled start/stop (only PRO D05)

Measurement rate: 2 meas/s

Operating conditions: -5…50 °C / 0…85 %RH non-condensing

PC connection: USB C / Mass Storage / Device

Power consumption: 10 mA typ. (excluding probes)

Power supply: 4 x AA batteries, PRO D01: 4 x AA Alkaline non rechargeable, PRO D05: 4 x AA NiMH rechargeable, External 5 Vdc via USB C (power adapter or PC USB port)

Protection degree: IP 67 (except probe connection) / IK 04

Storage capacity:

Up to 1 million data sets, file system based

Each data set includes date/time stamp and measurements (of all channels for multi-channel data loggers)

Data are stored in CVS files (only PRO D05)

Storage temperature: -25…65 °C (without batteries)

User interface: Multilingual (de, en, it, fr, es)

Weight: 370 g approx.

Display: 140 x 160 dot matrix backlit LCD / Visible area 42 x 50 mm

Multiple choice of measurement screens: Large digit single value / Multi-row / Statistical info (Min/Avg/Max) / Chart view

Alarm function: sound & light

Data logger: Up to 1 million data sets, file system based

Measuring input: 1x DX - digital input

Output: USB jack type C

Protection type: IP67

Scope of delivery: Device in carton box, incl batteries, Quickstart-manual, without probes

Version: Standard, 1 channel
