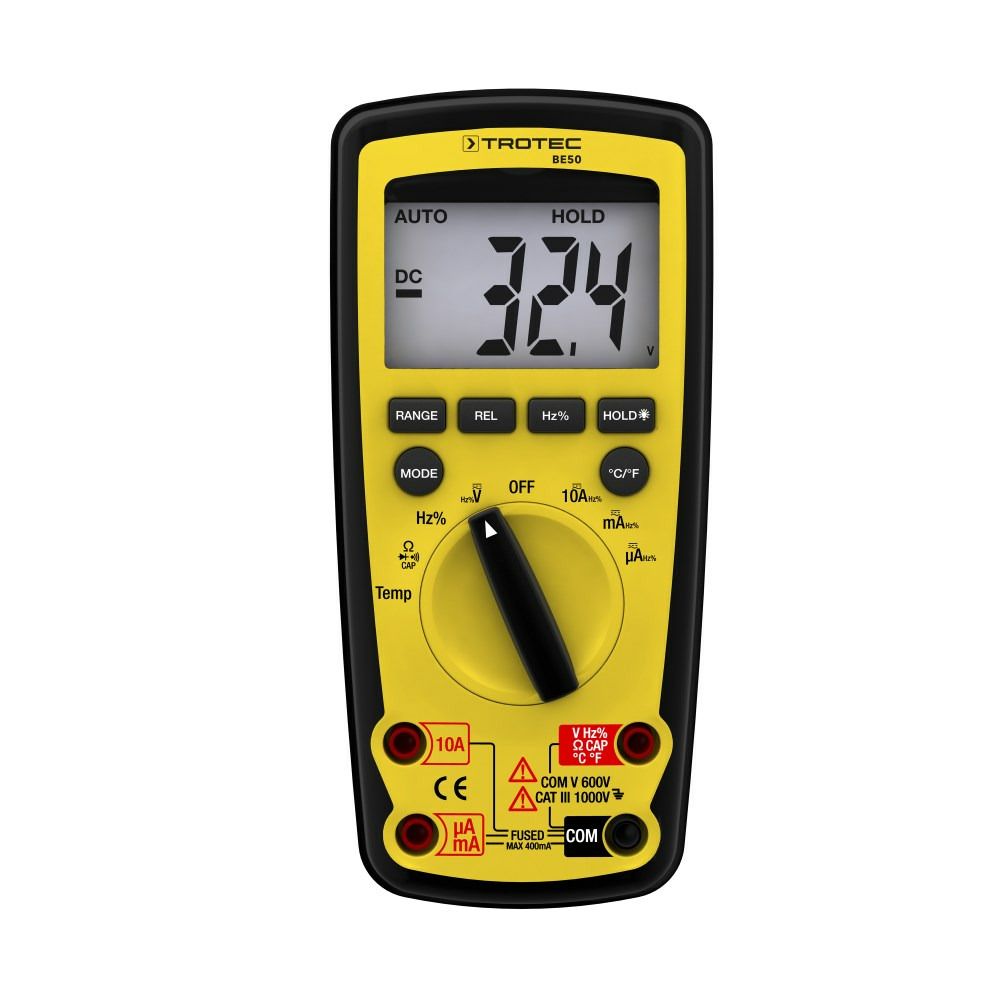

Trotec BE50 Digital Multimeter (1000 V / 10 A / 40 MΩ ; CAT III 1000 V)

Diode test:  Test current of 0.3 mA; test voltage approx. 1.5 V DC (typically)

Continuity test:  An acoustic signal is emitted if theresistance amount to less than 150 Ω.

LC display: 3 3/4 digits; 4000 count LCD

Exceedance of the measuring range (outside limits): OL will be displayed.

Polarity: Automatic (no indication for positive); minus (-) sign for negative

Measuring speed: 2 x per second; nominal

Battery indication: The battery icon will be displayed when the battery voltage drops below the operating voltage threshold.

Battery: 9 V battery

Fuses: mA; µA range: 0.5 A / 1000 V (fast acting) A range: 10 A / 1000 V (fast acting)

Operating temperature : 0°C to 50°C (32°F to 122°F)

Relative humidity:  < 70 %

Operating height above sea level: Max. 2000 m (7000 ft)

Type of protection;'  IP67

Weight:  approx. 320 g (11.29 oz)

Dimensions:  182 x 82 x 55 mm (7.17" x 3.23" x 2.17")

Safety:  This measuring device is designed for indoor use and complies with overvoltage category CAT III (1000 V) /CAT IV (600 V).

Measuring ranges

DC voltage (V DC): 400 mV~1000 V

AC voltage (V AC. 50 / 60 Hz): 400 mV~1000 V

Direct current (A DC): 400 µA~10 A

Alternating current (A AC): 400 µA~10 A

Capacitance (nF): 40 nF~100 μF

Resistance (Ω): 400 Ω~40 MΩ

Frequency / duty cycle: 9.999 Hz~9.999 MHz

Duty cycle %: 0.1-99.9 %

Temperature (°C / °F): -20 °C to +760 °C

Diode measurement: Test voltage: approx. 1.5 V ± 10 % + 5 digits; Test current: typ. 0.3 mA

Scope of delivery

• 1 x Multimeter

• 2 x Measuring tip

• 2 x Protective cap for measuring tips

• 1 x Temperature sensor (type K) with adapter

• 1 x 9 V battery

• 1 x Quick guide
