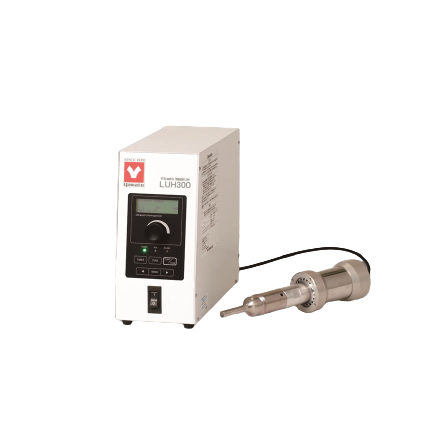

Yamato LUH300 超音波ホモジナイザー (300W)

Maximum output: 300W

Oscillation frequency: 20KHz±0.5KHz

Operating ambient temperature range: 5～45℃

Auto-tuning mode: ●

Constant-power mode: ●

Constant-amplitude mode: ●

Oscillation sensor mode: ●

Timer-controlled operation: ●/1sec～120min.

Operation with hand switch: 00

Attached horn or chip: 12 mm-dia. standard horn made from titanium alloy

Converter overall dimensions: Φ74×L170mm (not including chip)

External dimensions（W×D×H mm）: 142×360×303mm

Power Source: AC115/220V Single phase with step-down transformer

Weight: 7.2kg
