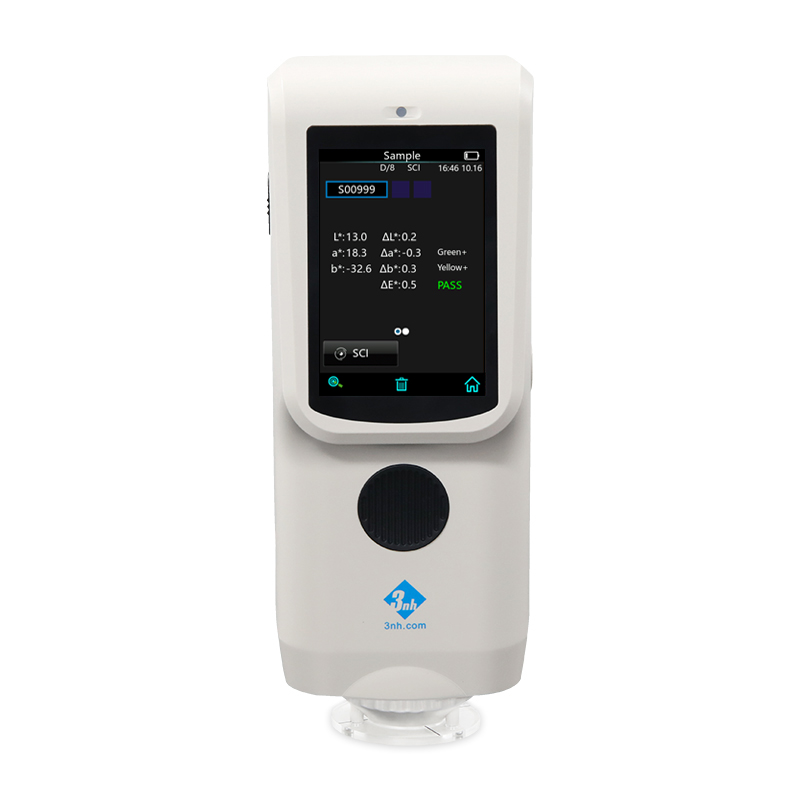

3nh TS7020 Portable Spectrocolorimeter (400~700nm)

Integrating Sphere Size: Φ40mm

Light Source: Combined full spectrum LED light source

Spectrophotometric Mode: Flat Grating

Senso: Silicon photodiode array (double row 24 groups)

Wavelength Range: 400～700nm

Wavelength Interval: /

Semiband Width: 10nm

Measured Reflectance Range: L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm)

Measuring Aperture: Φ8mm

Color Space: CIE LAB,XYZ,Yxy,LCh

Color Difference Formula: ΔE*ab,ΔE*00

Observer Angle: 10°

Illuminant: D65,A,F2(CWF)

Displayed Accuracy: Display 0.1, storage 0.01

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Dimension: L*W*H=81X71X214mm

Weight: About 460g

Battery: Li-ion battery, 6000 measurements within 8 hours

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB

Data Storage: Standard 500 Pcs, Sample 10000 Pcs

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture

Optional Accessory: USB Micro Printer, Powder Test Box
