Advanced Energy IN 600 数显温度计 ( -40 ~ 700°C; 8 ~ 14 µmm)

Temperature Range

IN 600 Sensor Heads: -40 to 700°C

Sub range: Adjustable; minimum range 51°C

Measurement

Spectral Range IN 600 Sensor Heads: 8 to 14 µmm

Repeatability: 0.5% of reading in °C or 0.8°C

The larger value is valid. The sensor head must be in constant ambient temperature for at least 15 minutes

Emissivity ε: 10 to 120% adjustable in steps of 0.1%

Optics

 Three fixed optics with Distance Ratio 2:1, 10:1 or 20:1

Interface and Communication

Analog Output: Linear current (0 or 4 to 20 mA), voltage (0 to 5 V) or thermocouple (type J or K)

Digital Interface: Switchable RS-232 and RS-485 (optional)

Display: Color LCD (262,000 colors)

Electrical

Power Supply: 5 VDC (when connected via USB) or 10 to 30 VDC, ripple < 0.5 V, current consumption dependent on

configuration

Load: Max 500 Ω

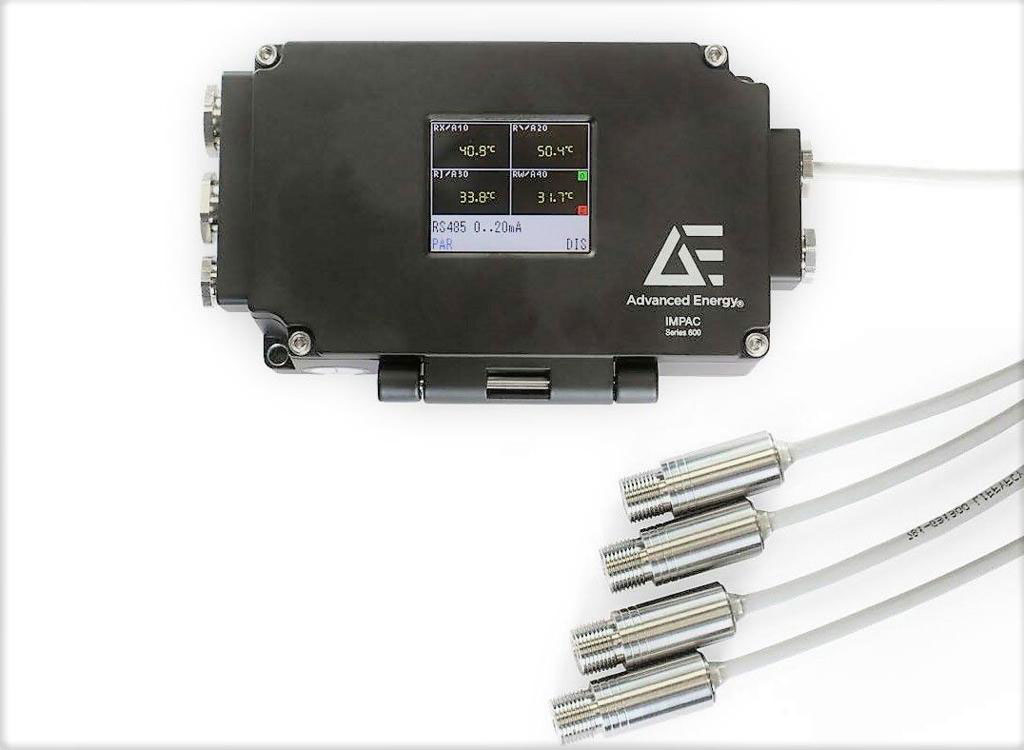

Standard configuration includes:

An electronic converter box, a sensor cable, and a removable

sensor head to allow for easy exchange
