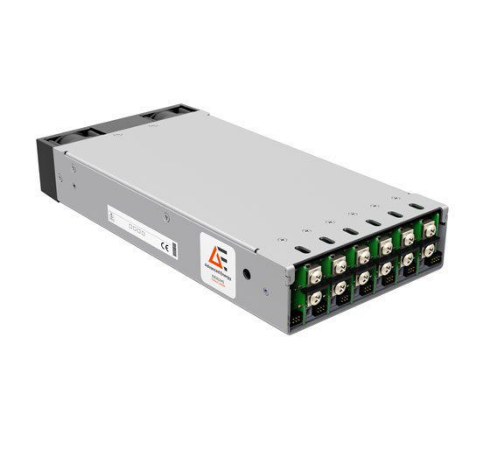

Advanced Energy CoolX1800 电源低压 (1800W)

Input
- Nominal Input Voltage Range: Universal Input 47~440 Hz, 100~240VAC
- AC Operating Input Range: 85~264VAC
- Extended AC Operating Range: Maximum for 5 seconds, 300VAC max
- DC Input voltage range: 120~300VAC
- Input Current: 90 VAC @ 1080 W, 14.5 A Max
- Inrush Current: 230 VAC @ 1800 W, 25 A Max
- Power Factor: 120 VAC @ 1400 W, 0.98 Min
- Efficiency: 230 VAC, 1800 W with 6 x CmC CoolMods, 91 %
Output
- Power Rating: 1800W Max
- Line Regulation:
For ±10% change from nominal line: ±0.1 %
CmE, CmF, CmG, CmH: ±0.5 %
- Ripple and Noise:
100 mV or 1.0% pk-pk. 20 MHz BW: 1 %
CmF: 1.5 %
- Capacitive Load:
CmA-CmE: 10mF Max
CmG, CmH: < 0.47mF Max
Environmental:
- Operating Temperature: Operates to specification below -20°C after 10 min warm-up, -40~70°C
- Storage Temperature: -40~85 °C
- Relative Humidity: Non-condensing, 5~95%RH
- Altitude: 5000 m
- AC Leakage Current:
Normal Condition (High Line): Mains Voltage 264 VAC/60 Hz, 244 μA
Single Fault Condition (High Line): Mains Voltage 264 VAC/60 Hz, 435μA
- Touch Current:
Normal Condition: Mains Voltage 264 VAC/60 Hz: 14.2 μA
Single Fault Condition: Mains Voltage 264 VAC/60 Hz, 246 μA
- Dimensions (L x W x H): 267 mm x 127 mm x 41 mm (10.5” x 5” x 1U)
- Weight: 1.6 Kg
