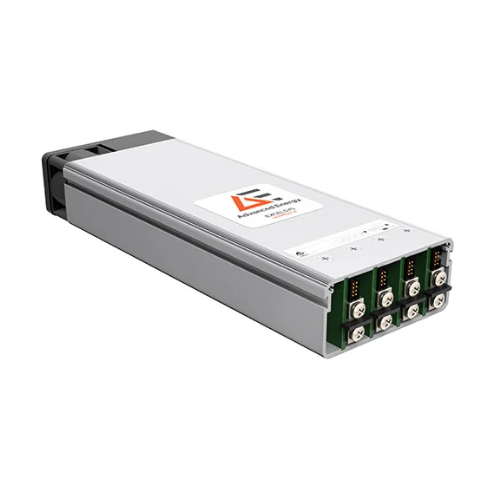

Advanced Energy UltiMod UX4 台式锯机 (600W)
制造商: Advanced Energy Model: UltiMod UX4 保障: 12 Month - 报价要求
- 联系
Input
- Input Voltage Range: Universal Input 47~440 Hz
85~264 VAC
120~380 VDC
- Power Rating: 600W
- Input Current: 85 VAC in 400 W out, 7.5A
- Inrush Current 230 VAC @ 25°C: 50A
- Undervoltage Lockout: Shutdown, 65 ~ 74 VAC
- Fusing: 250V, F8A HRC
Output
- Load and Cross Regulation: For 25% ~ 75% load change, ±0.2 %
- Line Regulation: For ±10% change from nominal line, ±0.1 VDC
- Output Isolation: Output to output/output to chassis, 500/500
General:
- Isolation Voltage:
Input to output; contact Advanced Energy for Hi-Pot instructions: 4000VAC Min
Input to chassis: 1500VAC Min
- Efficiency: 230 VAC, 1200 W @ 24 V, 90% Nom 91 % Max
- Leakage Current:
250 VAC, 60 Hz, 25°C: 300 μA
250 VAC, 60 Hz, 25°C (Option 04): 150 μA
- Bias Supply: Always on, current 500 mA, 4.8~5.2VDC
Environmental
- Operating Temperature: Operates to specification below -20°C after 10 min warmup, -40 ~ 70 °C
- Storage Temperature: -40 ~ 85 °C
- Relative Humidity: Non-condensing, 5 ~ 95 %RH
- Altitude: Operational: 2000 m, Storage: 8000 m
- Dimension (W x D x H): 260 mm x 89 mm x 1U (10 in x 3.5 in x 1U)
- Weight: 1.2 kg (fully loaded)
