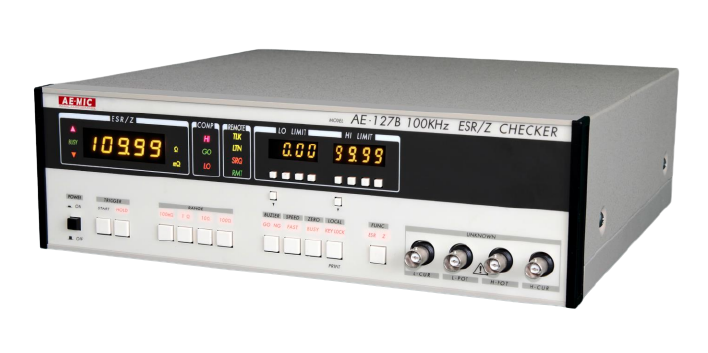

AE-MIC AE-127B 100kHz ESR/Z 监督计 (100mΩ~100Ω)

Range: Measuring range; resolution; test current

    100mΩ: 0.00mΩ~109.99mΩ; 0.01mΩ; 100mA

    1Ω: 0.0mΩ~1099.9mΩ; 0.1mΩ; 10mA

    10Ω: 0.000Ω~10.999Ω; 1mΩ; 1mA

    100Ω: 0.00Ω~109.99Ω; 10mΩ; 0.1mA

Test frequency: 100kHz±0.1%, Sine wave

Measuring method: 5-terminal measurement with contact check.

Measuring time:

    【Free running mode】 Fast: about 10times/sec. Slow: about 2.5times/sec.

    【Remote start mode】

           ESR: about(1.7+n)×2msec.[n=FAST:1~99 / SLOW: 4+power line cycle×1~9]×2msec.+0.5msec. (please plus 1msec., in case of making the Contact-check)

           Z: about(1.5+n)×3msec.[n=FAST:1~99 / SLOW: 3.5+power line cycle×1~9] ×3msec.+0.5msec. (please plus 1msec., in case of making the Contact-check)

Comparator setting range: 0000~9999[both for the upper and lower limit]

Indication comparator’s comparison result: LO/GO/HI, LED display and buzzer.

Control signal:

    input: START “L”[0V]→”H”[DC12V]⇒start

             HOLD open or ”H”[DC12V]⇒free run / “L”[0V]⇒hold

    output: LO/GO/HI, CONT-E and EOC/ open collector [40V/100mA max.]

Operation condition: 【Temp.】5℃~+50, 【Humidity】below 85%

Outer dimension: 333(W)×99(H)×300(D)mm【excluding protruding parts such as rubber legs, etc.】

Weight: about 4kg

Power supply: AC85V~265V, 50~60Hz, about 30VA

Option:

● RS-232C

● GP-IB

● Printer output[Centronics]

● Printer Cable

● 100kHz Short termination(Zero ohm standard resistor)
