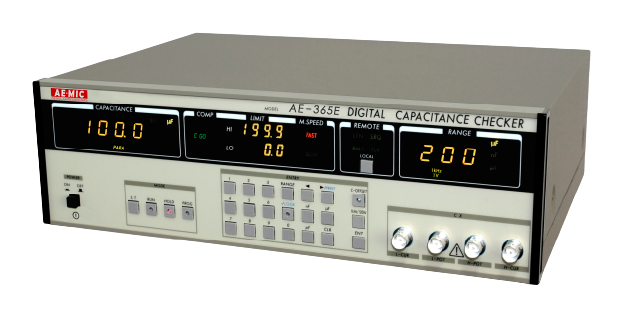

AE-MIC AE-365E 数字电容器检测机 (0.000pF~1.199mF, 120Hz/1kHz)

Range: Measuring range/ Resolution

     2pF: 0.000pF~1.999pF/ 0.001pF

     20pF: 0.00pF~19.99pF/ 0.01pF

     200pF: 0.0pF~199.9pF/ 0.1pF

     2nF: 0.000nF~1.999nF/ 0.001nF

     20nF: 0.00nF~19.99nF/ 0.01nF

     200nF: 0.0nF~199.9nF/ 0.1nF

     2µF: 0.000µF~1.999µF/ 0.001µF

     20µF: 0.00µF~19.99µF/ 0.01µF

     120µF: 0.0µF~119.9µF/ 0.1µF

     200µF: 0.0µF~199.9µF/ 0.1µF

     1.2mF: 0.000mF~1.199mF/ 0.001mF

Measurement Method: 3/5 terminal measurement [Available to select the measuring method on each range]

Measuring Frequency: 120Hz/1kHz±0.1%、sine wave

Output Impedance: Approx. 1Ω

Straycapacity revision range: Approx. 30pF

Temperature coefficient: Within ±100ppm/℃[f.s and zero]

Measurement time:

      【Free running】FAST:Aprrox.1~5 time/sec. SLOW:FAST×N(N: The setting number of “average” )

      【Start trigger signal [FAST]】1msec.[Fastest time]

Comparator set range: Capacitance:1999[120µF/1.2mF range: 1199] with HI and LO limit tanδ:99.9%

Use environment: Temperature:0℃~+50℃, Humidity:Less than 85%

Power supply: AC85V~265V, 50~60Hz、Aprrox. 50VA

Outer dimension: 333(W)×99(H)×300(D)mm

Weight: Approx. 4kg
