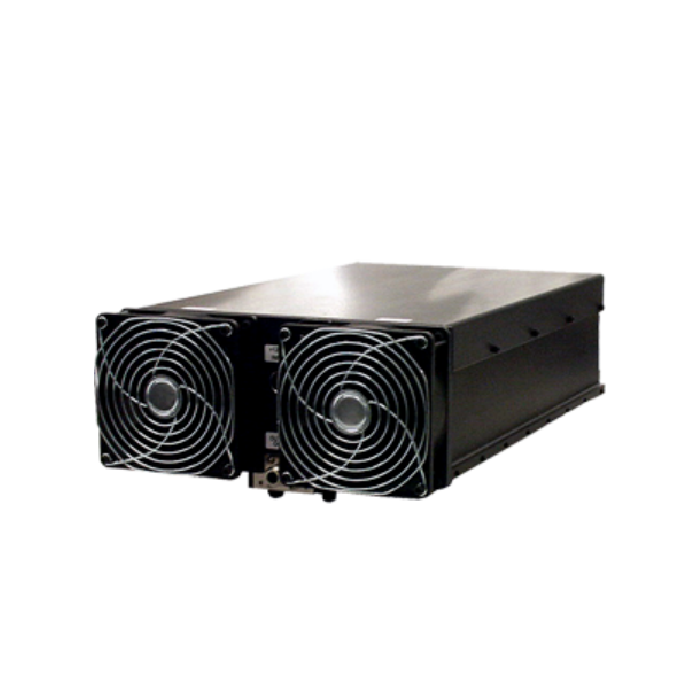

Bird 1500-WA 单向RF衰减器 (1.5kW)

Power Rating: 1500 W

Connector: N

VSWR and Frequency Range:

        1.10:1 DC ~ 1GHz

        1.25:1 1 ~ 2.4 GHz

Coolant Method: Forced Air Cooled

Temperature: -40 ~ 40°C (-40 ~ 104 °F)

PIM: -110 dBc Min.

AC Power: 115/203V AC Inputs

Humidity: 95% non-condensing

Standard Attenuation Values: 10, 20, 30dB

Dimensions: 20.4 x 10.7 x 5.9” / 519 x 272 x 150mm

Weight: 30.0 lbs. / 13.6 kg
