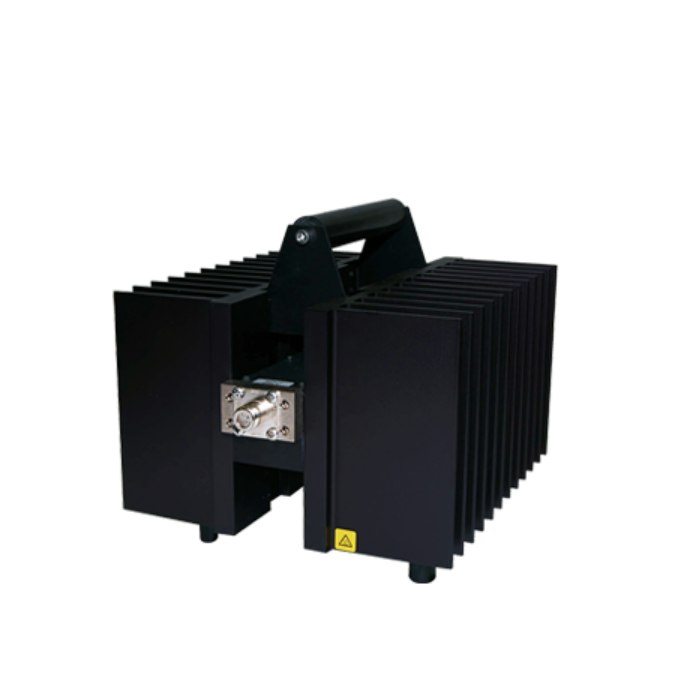

Bird 600-A-MFN-03 单向RF衰减器 (600W, Male/Female, N, 03dB)

Power Rating: 600 W

Connector: N

VSWR and Frequency Range:

       1.10:1 from DC to 1 GHz

       1.25:1 from 1 to 2.4 GHz

Coolant Method: Dry, Convection Cooled

Temperature: -40 to 40 °C (-40 to 104 °F)

PIM: -110 dBc Min.

Humidity: 95% non-condensing

Standard Attenuation Values: 3dB

Dimensions: 12.7” x 9.4” x 9.6”/ 323 x 239 x 244 mm

Weight: 21.5 lbs./ 9.8 kg

Details

Datasheet
