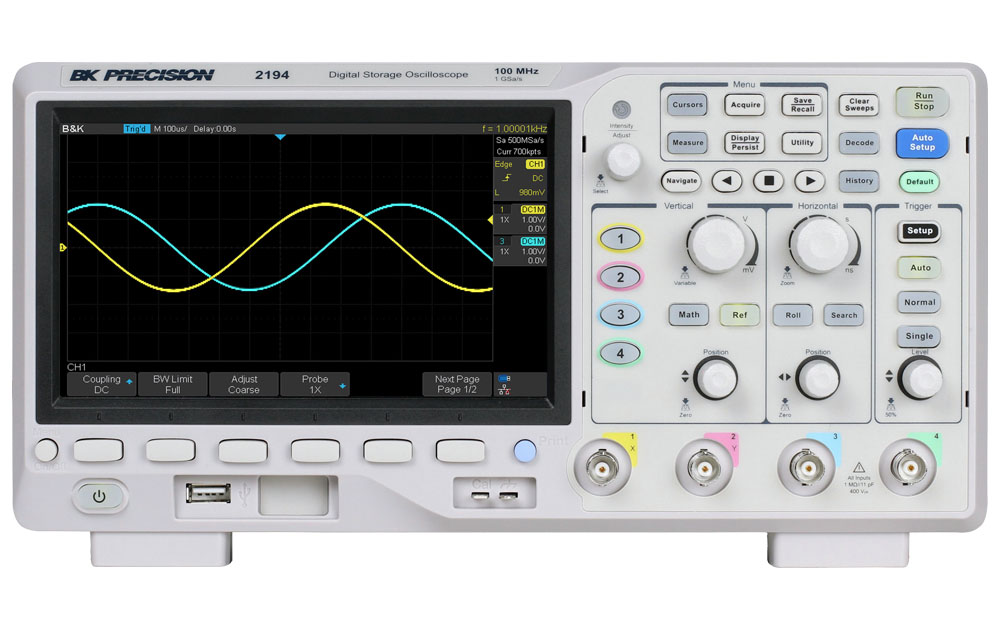

BKPRECISION 2194 数字存储示波器 (100 MHz, 4 channel)

Bandwidth: (-3 dB) 100 MHz

Rise Time (10% to 90%): < 3.5 ns

Sampling Rate:

     Single Channel: 1 GSa/s

     Dual Channel: 500 MSa/s

     All Channel: 250 MSa/s

Input:

     Input Channels: 4 analog channels

     Input Coupling: DC, AC, GND

     Input Impedance DC: 1 MΩ ± 2%, 11 pF ± 2 pF

Vertical System:

     Vertical Resolution: 8 bits

     Sensitivity Range: 1 mV/div to 10 V/div (1-2-5 sequence)

     DC Gain Accuracy: ≤ ± 3.0%: 5 mV/div to 10 V/div / ≤ ± 4.0%: ≤ 2 mV/div

     Maximum Input Voltage: 1 MΩ: ≤ 400 Vpk (DC + Peak AC ≤ 10 kHz)

Horizontal System:

     Time Base Range: 2 ns/div to 100 s/div

     Time base Accuracy: ± 25 ppm

Trigger System:

     Types: Edge, Slope, Pulse, Video, Window, Interval, Dropout, Runt, Pattern, and Serial

     Modes: Auto, Normal, Single

Measurement Parameters:

     Vertical: Max, Min, Pk-Pk, Ampl, Top, Base, Mean, Cmean, Stdev, Cstd, VRMS, Crms, FOV, FPRE, ROV, RPRE, Level@X

     Horizontal: Period, Freq, +Width, -Width, Rise Time, Fall Time, Bwidth, +Dut, -Dut, Delay, Time@level

     Delay: Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Skew

Display System:

     Display: 7" color TFT LCD, 24-bit, 800 x 480 pixels

     Language: English, Simplified Chinese, Traditional Chinese, French, Japanese, Korean, German, Russian, Italian, Portuguese

General:

     AC Input: 100 to 240 VAC 50/60 Hz, 100 to 120 VAC 400 Hz

     Dimensions (W x H x D): 12.28" x 5.94" x 5.22" (312 x 151 x 132.6 mm)

     Weight: 5.7 lbs (2.6 kg)

     Standard Accessories: Power cord (1), USB cable (1), passive probe (4), certificate of calibration
