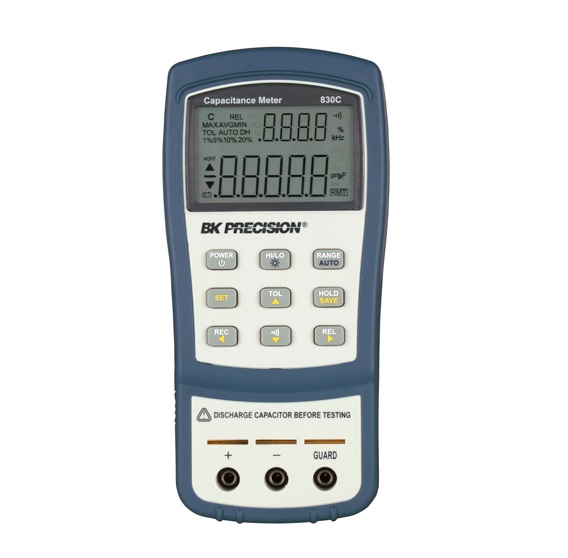

BKPRECISION 830C-220V 11000计数双显示手持电容计 (1000pF~199.99mF)

Capacitance (range; resolution):

     1000 pF; 0.1 pF

     10 nF; 0.001 nF

     100 nF; 0.01 nF

     1000 nF; 0.1 nF

     10 µF; 0.001 µF

     100 µF; 0.01 µF

     1000 µF; 0.1 µF

     10 mF; 0.001 mF

     50 mF; 0.01 mF

     199.99 mF; 0.01 mF

Display: 41/2-digit liquid crystal display (LCD) with maximum reading of 11000 counts

automatic polarity indication

Measuring rate (approx.): 5 times /sec for capacitance <100ºF

Low battery indicator: appears when the battery voltage drops below 6V (approx.)

Operating temperature: Full accuracy at 0°C to 40°C (32ºF~113ºF)

Storage temperature: -20°C to 50°C (-4ºF~122ºF) without battery

Operating humidity (R.H.): Maximum 80% R.H. for temperature up to 31°C decreasing linearly to 50% R.H. at 40°C

Temperature coefficient: 0.1 x (specified accuracy) / °C (from 0°C to 18°C or 28°C to 40°C)

Power requirements: Single standard 9V battery or AC power adapter*

Power consumption: 6.5 mA for battery operation, 2 uA standby current (power is off)

Battery life: 70 hours without backlight (approx.) (Based on new alkaline 9V battery)

Dimension (H x W x L): 7.5 x 3.5 x 1.6 inches (190 x 90 x 41 mm)

Weight: 0.77 lbs. (350 g) with battery

Safety and EMC compliance: IEC 61010-1:2001 pollution degree 2, IEC 61326-2-1:2005

Standard Accessories: Alligator clip leads, 9V battery, mini USB cable, instruction manual, AC adapter* (830C only)

Optional Accessories: BE800 120 VAC Wall Adapter, BE802 230 VAC European Two Prong Wall Adapter

Details

Datasheet


Manual
