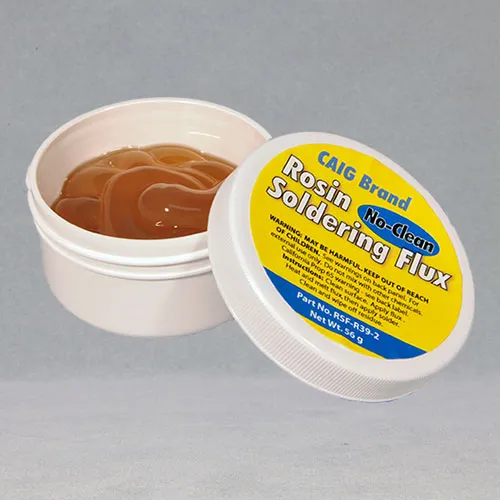

CAIG RSF-R39-2 无毒性焊剂 (No Clean; 56g)

- Applicator: Jar

- Formulation: Rosin (CAS 8050-09-7), proprietary ingredients

- Use: Precision electrical soldering

- Notes: Precision soldering of electrical connections for non-clean applications. Use Soldering Flux, TYPE RSF-R80 for general soldering.

BRIEF SPECS:

- Appearance: Smooth and tacky amber paste

- Viscosity (Malcom): Typically 200 – 280 at 5 rpm @ 25 C

- Tack strength (per IPC J-STD-004): Initial TBD 6 hr @ 50%RH TBD 24 hr @ 50%RH TBD Fineness of Grind < 10 micrometer Acid; Number (mg KOH/g) 90-110

- Halide content ROL0, per IPC J-STD-004, Halide free

- Halogen content None intentionally added

- IPC SIR J-STD-004B Pass

- Bellcore SIR (pass > 1011) Pass, 8.9X109, Ohms at 96 hours 2.2X1010 at 500 hours Pass/Fail = final > initial/10)

- Shelf life of unopened containers is nominally 12 months. If the material has been chilled, the container should be allowed to reach room

- Nonflammable, noncorrosive.
