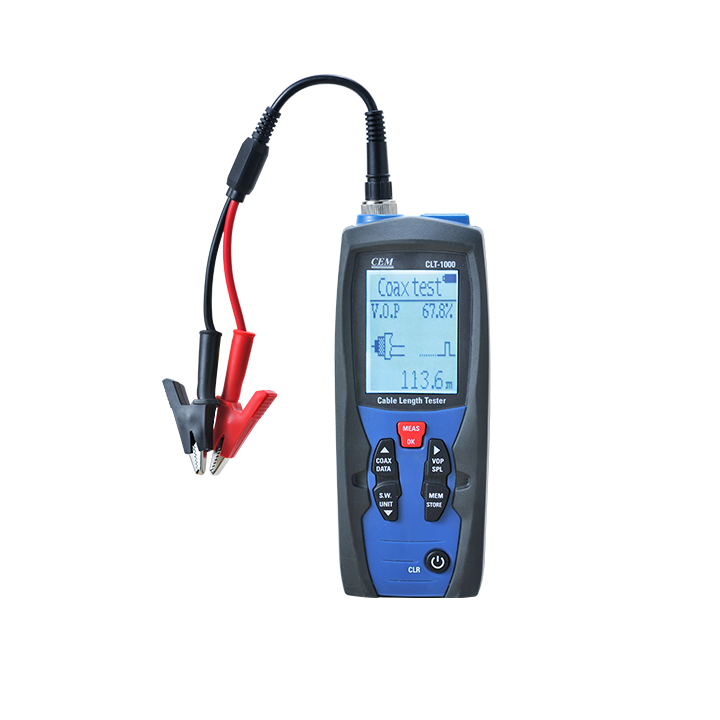

CEM CLT-1000 电缆长度测试仪 (3.0km at V.O.P≤99.9%)

  • 制造商:CEM
    Model: CLT-1000
    来源: China
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Minimum Range: pair cable or coaxial cable>5m, Single cable>10m

Maximum Range

Depends upon the V.O.P of the cables under test

3.0km at V.O.P≤99.9%, 2.4km at V.O.P≤80.0%

2.0km at V.O.P≤66.0%, 1.5km at V.O.P≤50.0%

Range Selection: Automatic range control

Accuracy: ±(2% of reading + 10cm)<100m, ±[2% of reading +20cm]≥100m

Resolution: 0.01m<100m, 0.1m≥100m

Impedance Selection: Automatic output impedance control

Cable Library: 20 standard cable types

Memory Location: 99 for custom cable types

Connector Type: BNC, RJ45

Size(HxWxD): 152mm x 61mm x 34mm

Weight: 230g


Accessories: 2 x AA batteries, USB cable, CD, gift box with carrying case.


Details

Datasheet


Features

High accuracy and fast reflection.

User friendly menu on screen

Operation for easy-to use

Automatic output impedance control

Auto-Zero and Auto Range

Large TFT Color LCD Display

Auto-Sensitivity allows for closer matching to a wide range of cables under test. Only V.O.P. Settings required

Measuring capability of the V.O.P. of a sample cable

99 internal memory locations store up to 99 traces for future analysis
