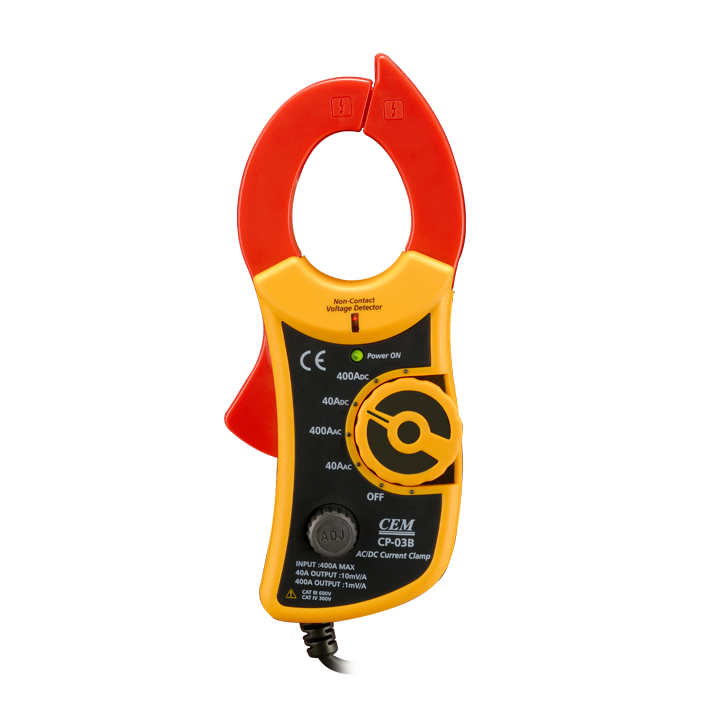

CEM CP-03B Smaller sized AC,AC/DC current Clamp-on Adaptors (AC/DC-400A)

Function: Range - Output - Sensitivity - Basic Accuracy

Current - AC/DC

40A  ;  10mV/A  ;  0.1A/mV DC/AC  ;  ±(2.5%+0.03A)

400A  ;  1mV/A  ;  1A/mV DC/AC  ;  ±(2.8%+0.03A)

Clamp jaw opening: 1.2” (30mm)

Non-contact voltage detector: 50-600VAC

Size (H x W x D): 150mm x 58mm x 35mm

Weight: 205g


Accessories: Test leads, 9V battery and clamshell

Detail

Datasheet


Specifications

Function

Range

Output

Sensitivity

Basic Accuracy

CP-03A

CP-03B

Current

4A

100mV/A

0.01A/mV AC

±(2.5%+0.06A)

AC

40A

10mV/A

0.1A/mV DC/AC

±(2.5%+0.03A)

AC

DC/AC

400A

1mV/A

1A/mV DC/AC

±(2.8%+0.03A)

AC

DC/AC

Clamp jaw opening

1.2” (30mm)

Non-contact voltage detector

50-600VAC
