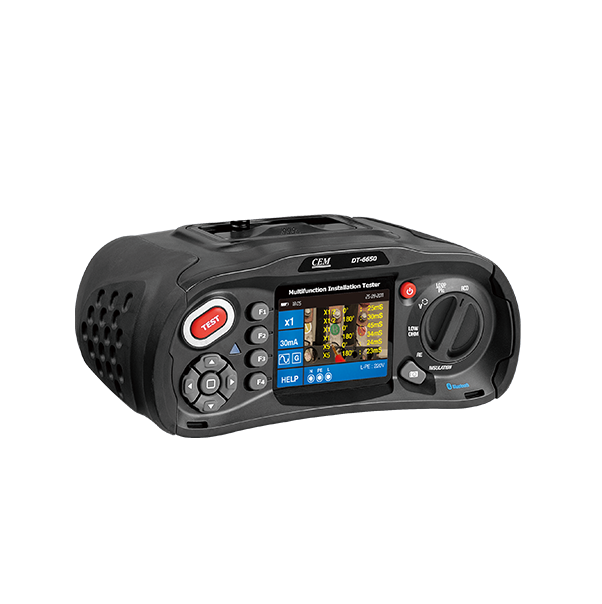

CEM DT-6650 Multifunction Installation Tester (1000V, ≥200mA)

Insulation

Terminal Voltage: Range - Max Resolution - Accuracy - Test Current - Short circuit current

125V (0% ~  + 10): 0.125~4000MΩ  ;  0.001MΩ  ;  ±(2% + 10)  ;  1mA at load 125kΩ  ;  ≤1mA

250V (0% ~  + 10): 0.250~4000MΩ  ;  0.001MΩ  ;  ±(2% + 10)  ;  1mA at load 250kΩ  ;  ≤1mA

500V (0% ~  + 10): 0.500~4000MΩ  ;  0.001MΩ  ;  ±(2% + 10)  ;  1mA at load 500kΩ  ;  ≤1mA

1000V (0% ~  + 10): 1.000~4000MΩ  ;  0.001MΩ  ;  ±(3% + 10)  ;  1mA at load 1MΩ  ;  ≤1mA

Low OHM

Range - Resolution - Accuracy - Max. open Circuit Voltage - Overload Protection

4.000Ω  ;  0.001Ω  ;  ±(1.5% + 30)  ;  5.8V  ;  250Vrms

40.00Ω  ;  0.01Ω  ;  ±(1.5% + 3)  ;  5.8V  ;  250Vrms

400.0Ω  ;  0.1Ω   ;  ±(1.5% + 3)  ;  5.8V  ;  250Vrms

Continuity Beeper

Range: Resolution - Operation Resistance - Max. open Circuit Voltage - Overload Protection

Continuity: 0.01Ω   ;  Resistance≤35Ω  ;  5.0V±1VDC  ;  250Vrms

Short circuit current: ≥200mA

LOOP Resistance

L-PE (Hi-Amp)

Range (Ω) - Max. Resolution (Ω) - Accuracy

0.00~999  ;  0.01  ;  ±(4% of reading + 6 digits)

L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz)

Range (Ω) - Resolution (Ω) - Accuracy

0.00~999  ;  0.01  ;  ±(5% of reading + 6 digits)

L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz)

Range (Ω) - Max. Resolution (Ω) - Accuracy

0.00~999  ;  0.01  ;  ±(4% of reading + 4 digits)

RCD Testing

Test current - Accuracy

x1/2, x1, x2, x5  ;  1.5%~ -9%

Voltage and Frequency

Measurement Range (V)/ AC/DC - Resolution - Accuracy

80-500V/(45-400Hz)  ;  1V  ;  ±(2% of reading + 2 digits)

Size (H x W x D): 220mm x 96.5mm x 60.5mm

Weight: 631g


Accessories: Test leads, 8 x1.5V“AAA” batteries, USB cable and Software, gift box with carrying case.


Detail

Datasheet


Features

3.5" TFT color LCD display with 320x240 pixels

Fast high current loop test

Variable RCD current mode for customized settings

PASS/FAIL indication for RCD tests

Select voltage measurement between L-N, L-PE and N-PE

Support SD memory and USB and Bluetooth interface

Internal Memory

Safe Earth Volt Touchpad detects raised earth voltages >50 V, indicating potential dangerous situations.

Slim probes designed with test button

For easy, always reliable and accurate compensation of test leads and mains cords.
