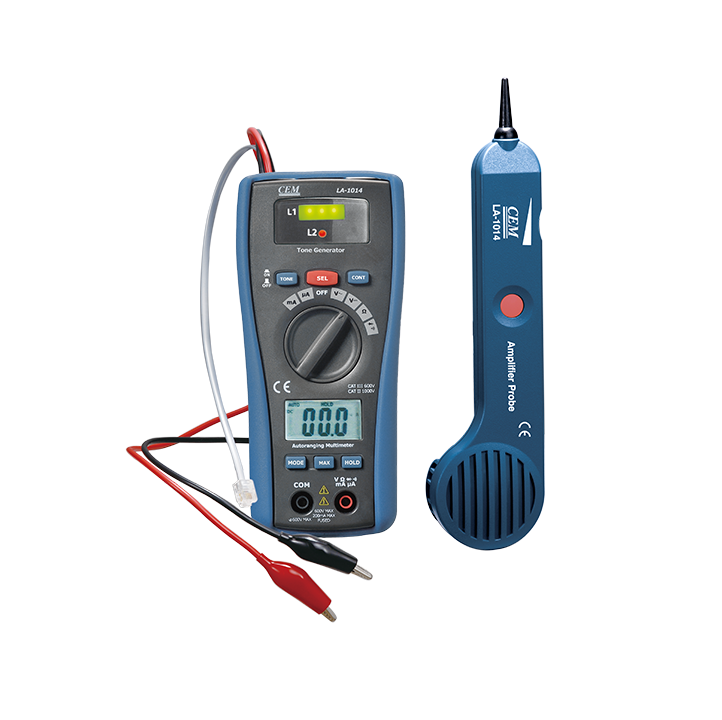

CEM LA-1014 2 in 1 LAN Tester & Multimeter (600V; 200mA; 20MΩ)

Function: Max Range - Basic Accuracy

Voltage DC: 600V  ;  ±0.5%

Voltage AC: 600V  ;  ±1.2%

Current DC: 200mA  ;  ±1.5%

Current AC: 200mA  ;  ±2.0%

Resistance: 20MΩ  ;  ±0.8%

Continuity Test: Beep if less than 100Ω

Size (H x W x D): 162mm x 74.5mm x 44mm

Weight: 308g


Accessories: Test leads, 9V batteries and gift box.

Detail

Datasheet


Features

Insulated inductive probe tip prevents shorting conductors

Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification

Alligator clips for non-terminated cables and modular connectors for direct connections to telephone and internet wiring

Selectable continuous or variable tone generation

Built-in speaker on probe with sensitivity control

RJ45 and RJ11 modular connectors
