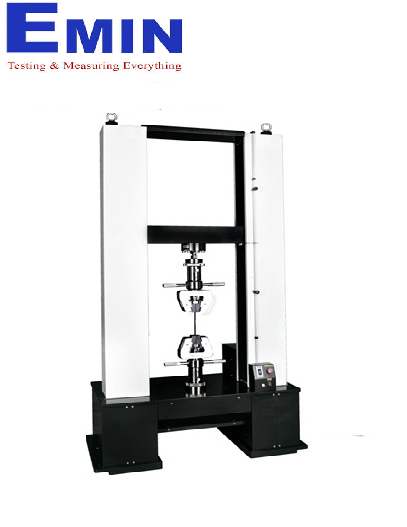

Cometech QC-501M1 电脑伺服万能材料试验机(300KN)

Manufacturer: Cometech

Model: QC-501M1

Origin: Taiwan

Warranty: 12 months


Max. Capacity: 300 KN

Force resolution: 1/10000

PC-Port: TCP/IP

Stroke(w/o grips):  1100 mm

Stroke resolution: 0.001 mm

Space between columns: 550 mm

Speed range: 0.08 ~ 333 mm/min

Speed precision: 0.08 ~ 333 mm/min ± 3%

Hardware safety protection: Up/down limit, emergency stop button

Motor type: Servo drive

Transmission: Precision reducer, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.

Power supply: 3 phase 200~240VAC,30A

Dimension: 140 × 70 × 235 cm

Weight: 1250 kg
