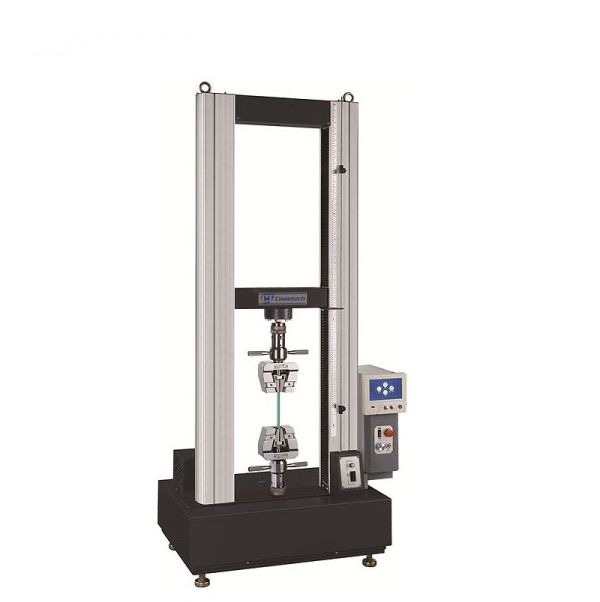

Cometech QC-505D1 多功能材料试验机 (50kN)

Max. Capacity: 50kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Precision: 1/10,000

Force Resolution: 23 bits

Test stroke: 1100 mm (w/o grip)

Stroke resolution: 0.0025mm

Space between columns: 425 mm (550mm, 680mm, 800mm optional)

Speed range: 25~650 mm/min adjustable(By digital DIP switch)

Speed accuracy: ±10%

PC-Port: TCP/IP(Connect software optional)

Data sampling rate: 1200Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: DC Motor

Stiffness Slop: 5310kgf/mm

Transmission: Timing belt, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.

Power Supply: Single phase 110 / 220 VAC, 5A

Dimension: 90 x 60 x 200 cm

Weight: 360kgf
