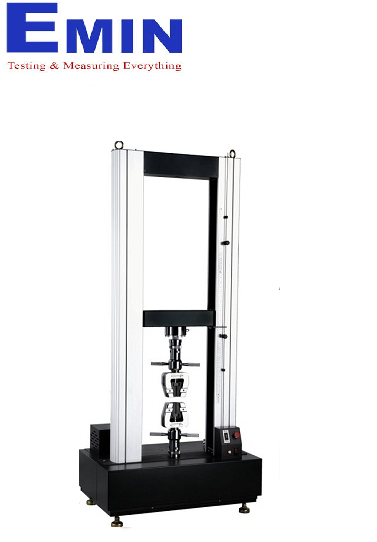

Cometech QC-505M1 电脑伺服万能材料试验机(50kN)

Manufacturer: Cometech

Model: QC-505M1

Origin: Taiwan

Warranty: 12 months


Max. Capacity: 50kN

Force Resolution:  1/10000

Stroke: 1000mm (without grips)

Stroke Resolution:  0.001 mm

Space between columns: 420mm

Speed range:  0.15 ~ 600 mm /min adjustable(Set up by computerized)

Speed precision:  0.15 ~ 600 mm/min ± 2%

PC-Port: TCP/IP

Motor type: Servo drive

Hardware safety protection: Up/down limit, emergency stop button

Transmission:  Precision reducer, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.

Power: Single phase 200 ~ 240VAC,8A

Dimension:  90 × 60 × 200 cm

Weight: 360 kg
