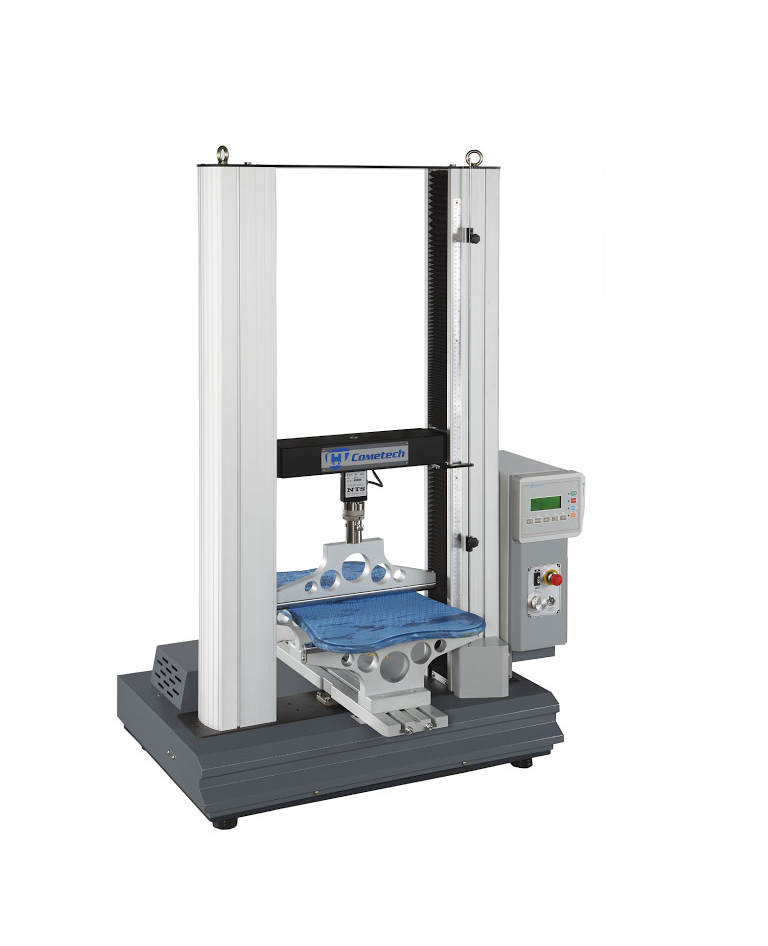

Cometech QC-506M1F 电脑伺服万能材料试验机 (20kN, 800 mm)

Max. Capacity: 20kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke: 800 mm (w/o grip)

Stroke resolution: 0.0001 mm

Space between columns: 425 mm (550mm, 680mm, 800mm for optional)

Speed range:  0.2 ~ 830 mm/min (Can be set by computer digital)

PC-Port: RJ45(TCP/IP) [software optional]

Data sampling rate: 400Hz (Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor type: Servo Motor

Stiffness Slop: 1484 kgf/mm

Power Supply: Single phase 200 ~ 240VAC,5A

Dimension: 95× 58 × 151 cm

Weight: 145 kg


- Display panel: EM2FTP-001

- Software: SM1F0-04

- Long extensometer QC-557

- Grips (nessesary)

- Loadcell.  If want to test under 10% Max. Capacity
