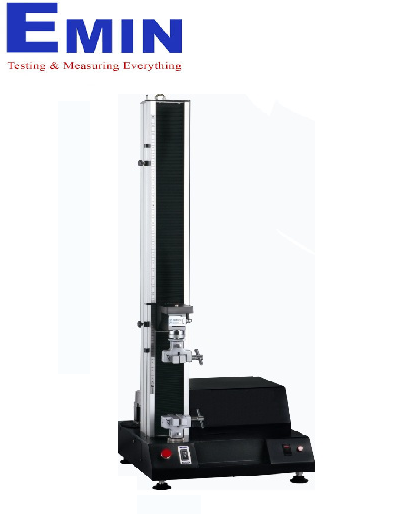

Cometech QC-508M2 拉力试验机(5kN)

Manufacturer: Cometech

Model: QC-508M2

Origin: Taiwan

Warranty: 12 months


Max.Capacity: 5kN

Force Resolution: 1/100,000

Test stroke:   800mm (without grips)

Stroke Resolution: 0.0001 mm

Cantilever distance: 70 mm

Speed range:   0.0002~1000 mm/min (adjustable)

Speed precision:   High speed mode: 0.05~ 1000  mm/min ±3%; Low speed mode: 0.0002~3 mm/min ± 3%

PC-Port:   TCP/IP

Data sampling rate:  Maximum200 Hz

Motor type: Servo drive

Power: Single phase 200 ~ 240VAC,5A

Dimension:   50 × 53 × 145 cm

Weight:  80kg
